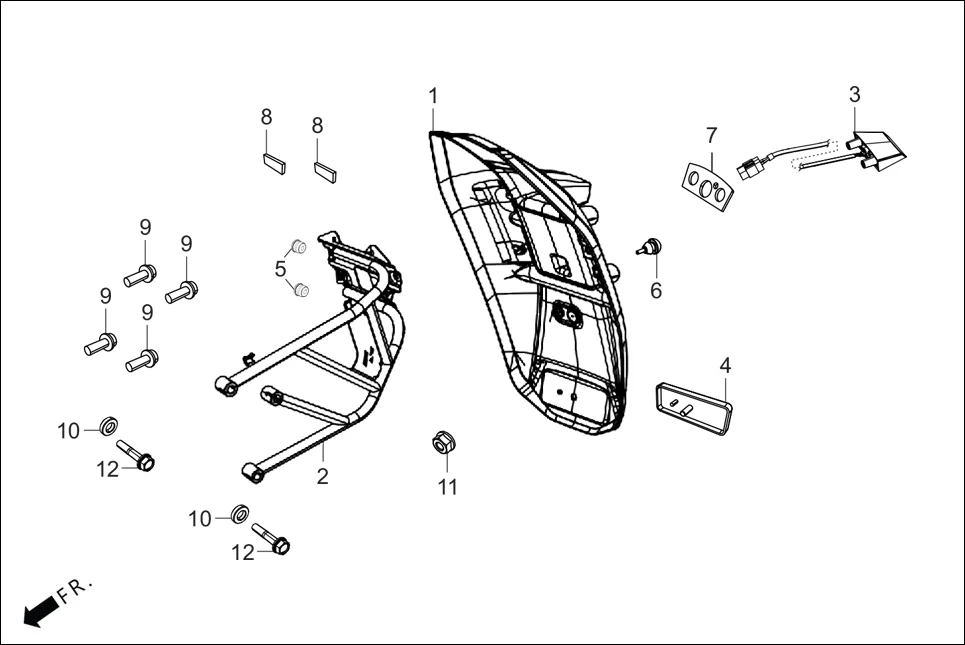

F-21 - REAR FENDER
Hero XTREME 250R(Mar., 2025) · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 8012C-ACW-000 | REAR FENDER COMP | 1 | |
| 2 | 52107-ACW-000 | STAY REAR FENDER | 1 | |
| 3 | 33720-ACW-001 | LIGHT ASSY LICENSE | 1 | |
| 4 | 33741-KST-920 | REFLEX REFLECTOR | 1 | |
| 5 | 51108-ACW-000 | TUBE CAP | 2 | |
| 6 | 80145-AAW-000 | RUBBER STOPPER | 1 | |
| 7 | 80203-ACP-001 | RUBBER LICENSE LIGHT | 1 | |
| 8 | 83407-KWA-830 | CUSHION, FR.VISOR | 2 | |
| 9 | 90071-ACW-000 | BOLT FLANGE SOCKET 6X16 | 4 | |
| 10 | 90502-ACA-000 | COLLAR 8MM | 2 | |
| 11 | 94050-06000 | NUT, FLANGE, 6 MM | 1 | |
| 12 | 95701-08045-03 | BOLT FLANGE 8X45 | 2 | |
