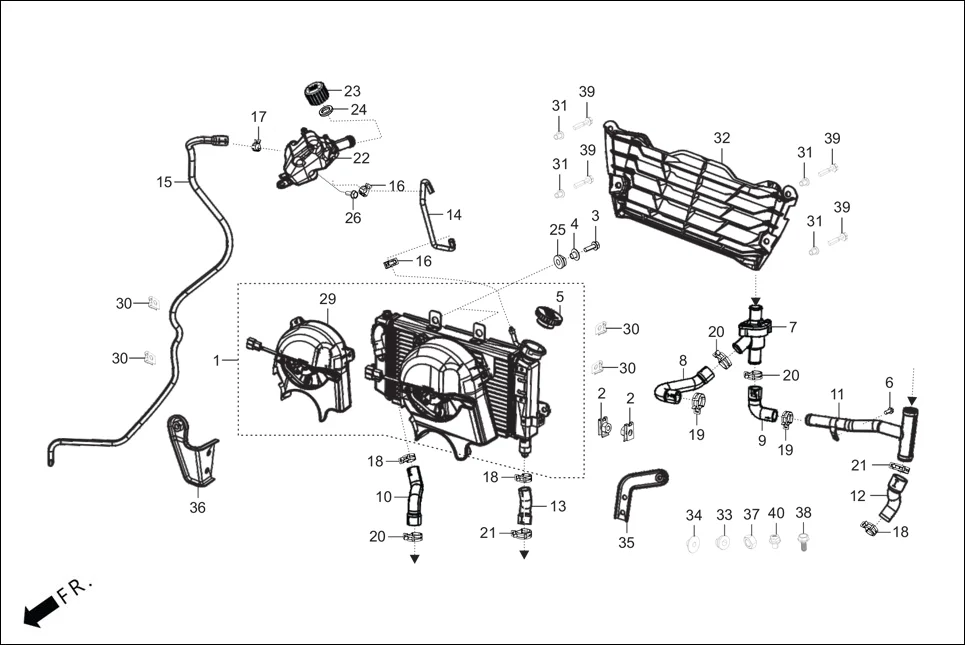

F-1B - RADIATOR
Hero XTREME 250R(Mar., 2025) · 38 parts
Parts in This Assembly (38)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 19000-ACW-001 | RADIATOR ASSEMBLY | 1 | |
| 2 | 19014-ACA-000 | SET NUT | 2 | |
| 3 | 95701-06018-00 | BOLT FLANGE 6X18 | 2 | |
| 4 | 19052-AAB-A00 | COLLAR ABS UNIT MOUNTING | 2 | |
| 5 | 19060-ACA-001 | RADIATOR PRESSURE CAP | 1 | |
| 6 | 96001-06012-07 | BOLT, FLANGE, SH., 6 X 12 | 1 | |
| 7 | 19200-ACA-001 | THERMOSTAT ASSY | 1 | |
| 8 | 19224-ACA-000 | HOSE HEAD CYLINDER TO THERMOSTAT | 1 | |
| 9 | 19225-ACA-000 | HOSE BYPASS THERMOSTAT | 1 | |
| 10 | 19226-ACA-000 | HOSE THERMOSTAT TO RADIATOR | 1 | |
| 11 | 19227-ACW-000 | PIPE CROSS OVER | 1 | |
| 12 | 19233-ACW-000 | HOSE WATER PUMP TO JOINT WATER HOSE | 1 | |
| 13 | 19234-ACW-000 | HOSE JOINT, WATER HOSE TO RADIATOR | 1 | |
| 14 | 19264-ACW-000 | HOSE OVERFLOW BOTTLE | 1 | |
| 15 | 19265-ACW-000 | DRAIN HOSE OVER FLOW BOTTLE | 1 | |
| 16 | 19511-ACA-000 | HOSE CLAMP D11.5 | 2 | |
| 17 | 19512-ACA-000 | HOSE CLAMP D12.5 | 1 | |
| 18 | 19525-ACA-000 | HOSE CLAMP D25 | 3 | |
| 19 | 19526-ACA-000 | HOSE CLAMP D26 | 2 | |
| 20 | 19528-ACA-000 | HOSE CLAMP D28 | 3 | |
| 21 | 19530-ACA-000 | HOSE CLAMP D30 | 2 | |
| 22 | 19571-ACW-000 | OVERFLOW BOTTLE | 1 | |
| 23 | 19573-ACY-100 | CAP OVERFLOW BOTTLE | 1 | |
| 24 | 19579-ACY-100 | CAP RUBBER SEAL | 1 | |
| 25 | 83545-AAB-A00 | RUBBER ABS UNIT MOUNTING | 2 | |
| 26 | 95701-06014-00 | BOLT, FLANGE, 6 X 14 | 1 | |
| 29 | 1902A-ACW-001 | COOLING FAN ASSEMBLY | 1 | |
| 30 | 19014-ACN-000 | SET NUT | 4 | |
| 31 | 19052-ACW-000 | COLLAR RADIATOR SHROUD | 4 | |
| 32 | 19500-ACW-000 | RADIATOR SHROUD | 1 | |
| 33 | 19578-ACY-100 | RUBBER RADIATOR MOUNTING | 1 | |
| 34 | 19581-ACY-100 | COLLAR RADIATOR MOUNTING | 1 | |
| 35 | 61423-ACW-000 | STAY SHROUD MOUNTING RH | 1 | |
| 36 | 61424-ACW-000 | STAY SHROUD MOUNTING LH | 1 | |
| 37 | 94001-06000-0S | NUT, HEX., 6 MM | 2 | |
| 38 | 95701-06016-07 | BOLT, FLANGE, 6 X 16 | 2 | |
| 39 | 95701-06025-00 | BOLT, FLANGE, 6X 25 | 4 | |
| 40 | 96001-06008-02 | BOLT, FLANGE, SH. 6 X 8 | 4 | |
