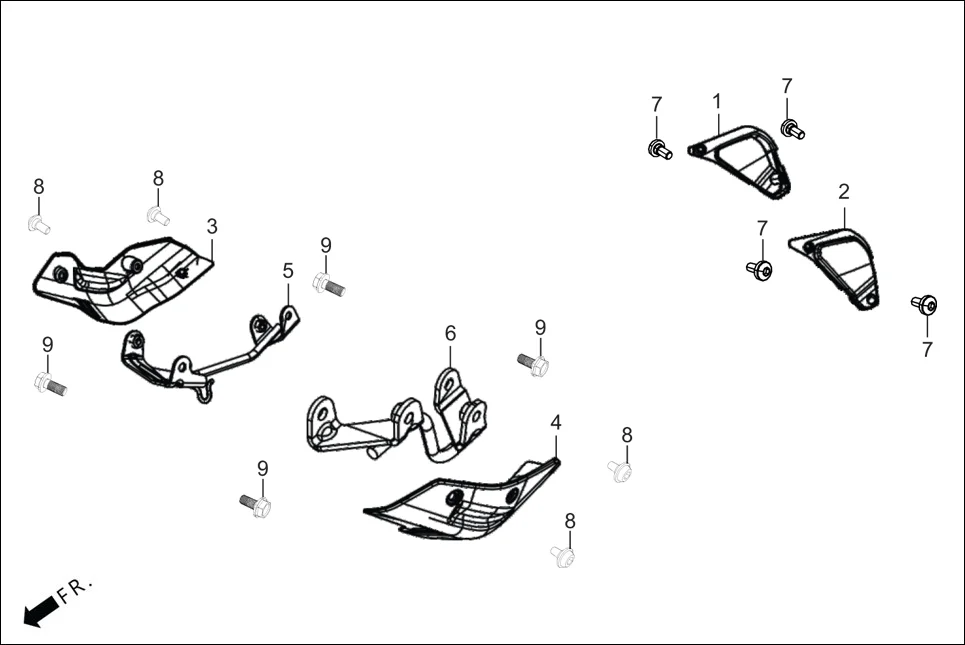

F-1A-II - FAIRING (FR. VISOR/COVERS)
Hero XTREME 250R(Mar., 2025) · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 83550-ACA-000 | COVER R UTILITY | 1 | |
| 2 | 83650-ACA-000 | COVER L UTILITY | 1 | |
| 3 | 64300-ACW-000L | UNDER COWL RH (MAT AXIS GRAY ME.) | 1 | |
| 3 | 64300-ACW-000N | UNDER COWL RH (MAT RAY SILVER) | 1 | |
| 4 | 64400-ACW-000L | UNDER COWL LH (MAT AXIS GRAY ME.) | 1 | |
| 4 | 64400-ACW-000N | UNDER COWL LH (MAT RAY SILVER) | 1 | |
| 5 | 64359-ACW-000 | STAY FRONT ASSY UNDER COWL RH | 1 | |
| 6 | 64369-ACW-000 | STAY FRONT ASSY UNDER COWL LH | 1 | |
| 7 | 90001-05012-03 | SOCKET BOLT SPL M5X12 | 4 | |
| 8 | 90162-06013-0F | BOLT SP FLANGE SOCKET 6X13 | 4 | |
| 9 | 95701-06014-0F | BOLT FLANGE 6X14 | 4 | |
