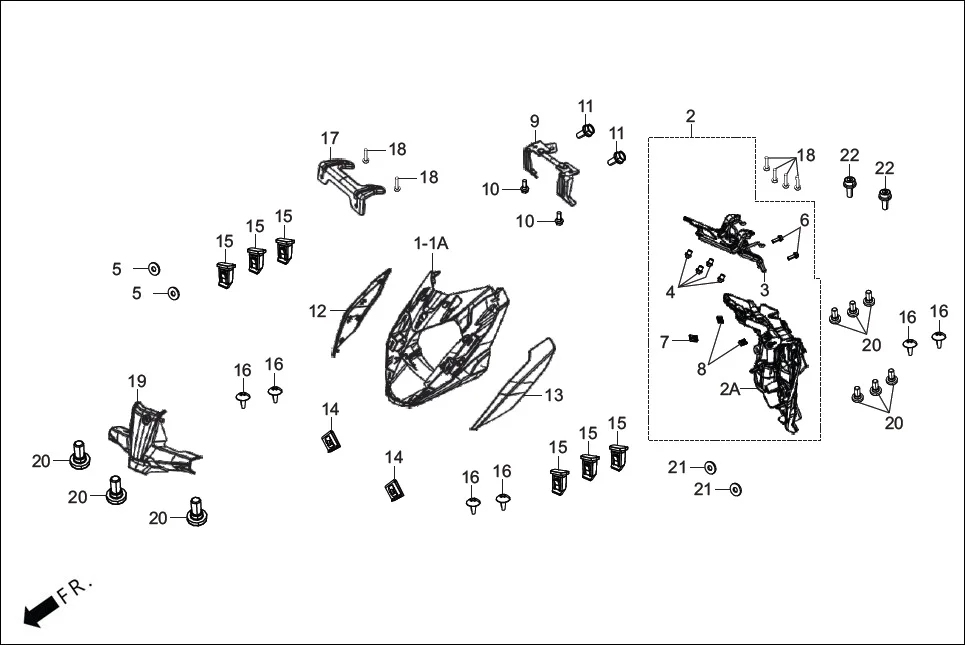

F-1A - FAIRING (FR. VISOR/COVERS)
Hero XTREME 250R(Mar., 2025) · 30 parts
Parts in This Assembly (30)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | ACWAS6A0010ARG | SET COWL FRONT (PEARL RED) | 1 | |
| 1 | ACWAS6A0010AYG | SET COWL FRONT (PEARL BLACK) | 1 | |
| 1 | 61301-ACW-000J | FRONT COWL (MATT FUNK LIME YELLOW) | 1 | |
| 1 | 64301-ACW-000F | FRONT COWL UPPER A (MAT BLACK) | 1 | |
| 2 | ACWAB0A003000G | PANEL INNER SUB ASSY | 1 | |
| 2 | 83402-ACW-000 | PANEL INNER | 1 | |
| 3 | 61311-ACW-000 | STAY SPEEDOMETER SUB ASSY | 1 | |
| 4 | 83518-ACW-000 | COLLAR SPEEDO METER | 4 | |
| 5 | 94101-05000 | WASHER , PLAIN, 5MM | 2 | |
| 6 | 90071-MG8-000 | BOLT, FLANGE, SOCKET 6X16 | 2 | |
| 7 | 90320-GC3-000 | NUT, SPRING, M5 | 1 | |
| 8 | 90677-KAN-961 | NUT CLIP 5MM | 2 | |
| 9 | 61315-ACW-000 | MTG STAY ASSY INNER PANEL | 1 | |
| 10 | 90113-KST-940 | BOLT SIDE COVER | 2 | |
| 11 | 95701-06014-0F | BOLT FLANGE 6X14 | 2 | |
| 12 | 61322-ACW-000A | SIDE COVER R FR COWL (PEARL RED) | 1 | |
| 12 | 61322-ACW-000D | SIDE COVER R FR COWL (FORCE SILVER ME.) | 1 | |
| 12 | 61322-ACW-000E | SIDE COVER R FR COWL (PEARL BLACK) | 1 | |
| 13 | 61323-ACW-000A | SIDE COVER L FR COWL (PEARL RED) | 1 | |
| 13 | 61323-ACW-000D | SIDE COVER L FR COWL (FORCE SILVER ME.) | 1 | |
| 13 | 61323-ACW-000E | SIDE COVER L FR COWL (PEARL BLACK) | 1 | |
| 14 | 90344-AAW-000 | NUT CLIP 5MM | 2 | |
| 15 | 90683-ABZ-000 | SLIDE CLIP | 6 | |
| 16 | 93903-34210 | SCREW TAPPING 4X10 | 6 | |
| 17 | 64315-ACW-000 | STAY FRONT NUMBER PLATE | 1 | |
| 18 | 96700-ACW-000 | BOLT FLANGE SOCKET | 6 | |
| 19 | 83403-ACW-000 | SPEEDO BASE COVER | 1 | |
| 20 | 90001-05012-03 | SOCKET BOLT SPL M5X12 | 9 | |
| 21 | 90401-ACW-000 | SPEEDO METER WASHER | 2 | |
| 22 | 90071-ACW-000 | BOLT FLANGE SOCKET 6X16 | 2 | |
