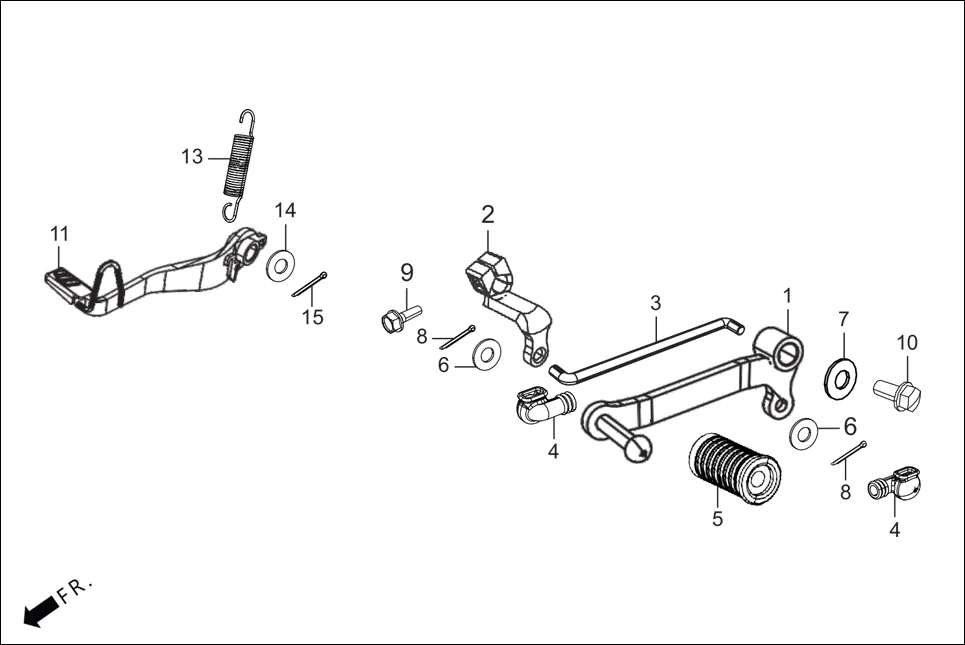

F-18 - GEAR CHANGE PEDAL /BRAKE PEDAL
Hero XTREME 250R(Mar., 2025) · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 24701-ACW-000 | PEDAL GEAR CHANGE | 1 | |
| 2 | 24711-ACW-000 | ARM GEAR CHANGE | 1 | |
| 3 | 24720-ACW-000 | TIE ROD | 1 | |
| 4 | 24721-GS3-000 | COVER,CHANGE PEDAL | 2 | |
| 5 | 24781-KR3-770 | RUBBER, CHANGE PEDAL | 1 | |
| 6 | 90502-155-000 | WASHER,PLAIN,7MM | 2 | |
| 7 | 94103-06000 | WASHER PLAIN,6MM | 1 | |
| 8 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 2 | |
| 9 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 1 | |
| 10 | 96001-06012-07 | BOLT, FLANGE, SH., 6 X 12 | 1 | |
| 10 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 1 | |
| 11 | 46500-ACW-000 | PEDAL BRAKE | 1 | |
| 12 | 28333-300-000 | SPRING KICK STARTER STOPPER | 1 | |
| 13 | 46514-ABZ-000 | SPG. BRAKE PEDAL | 1 | |
| 14 | 94101-ABZ-000 | WASHER PLAIN 17 MM | 1 | |
| 15 | 94201-30250 | PIN, SPLIT, 3.0 X 25 | 1 | |
