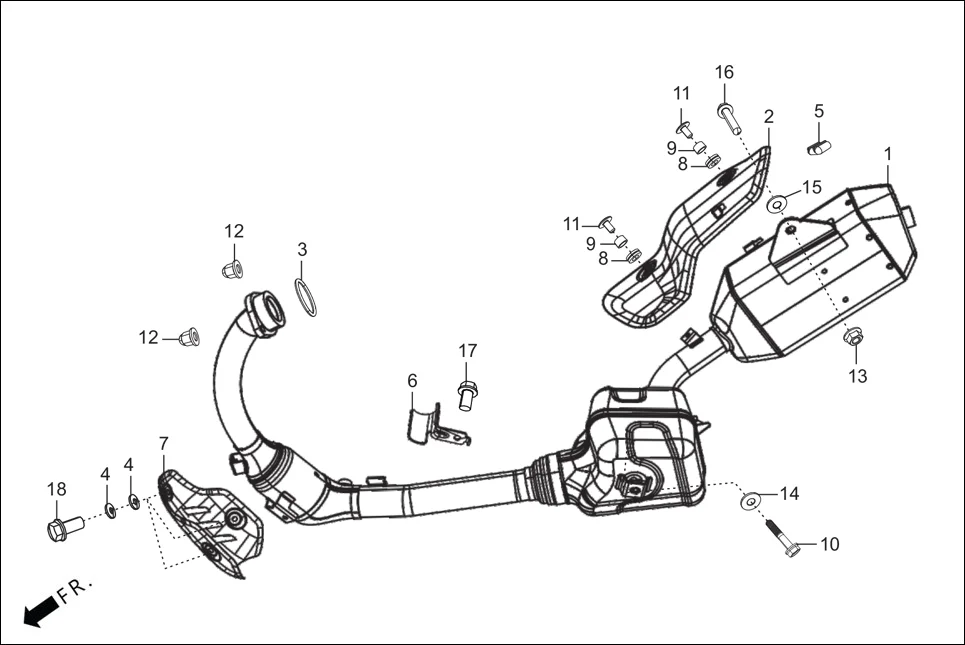

F-16 - EXHAUST MUFFLER
Hero XTREME 250R(Mar., 2025) · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18300-ACW-000 | MUFFLER COMP. EXHAUST | 1 | |
| 2 | 18314-ACW-000N | COVER MUFFLER SUB ASSY (MAT RAY SILVER) | 1 | |
| 2 | 18314-ACW-000L | COVER MUFFLER SUB ASSY (MAT AXIS GRAY METALLIC) | 1 | |
| 3 | 18291-ACA-000 | GASKET EXH. PIPE | 1 | |
| 4 | 18292-KTP-900 | PACKING, PROTECTOR | 6 | |
| 5 | 18293-KPK-900 | RUBBER, PKG. PROTECTOR | 1 | |
| 6 | 18312-ACW-000 | O2 SENSOR PROTECTION | 1 | |
| 7 | 18313-ACW-000 | COVER CAT PROTECTOR | 1 | |
| 8 | 18345-MBT-610 | RUBBER, PROTECTOR, MOUNT | 2 | |
| 9 | 33619-459-840A | COLLAR,WINKER STAY | 2 | |
| 10 | 90019-ABZ-000 | BOLT FLANGE 8X41.5 | 1 | |
| 11 | 90107-ABW-300 | BOLT SPL. 6X14 | 2 | |
| 12 | 90305-ABW-300 | NUT 8MM EXP. | 2 | |
| 13 | 94050-10000 | NUT, FLANGE, 10MM | 1 | |
| 14 | 94103-08700 | WASHER PLAIN 8MM | 1 | |
| 15 | 94103-10000 | WASHER, PLAIN, 10MM | 1 | |
| 16 | 95801-10055-00 | BOLT, FLANGE, 10X55 | 1 | |
| 17 | 96001-06010-07 | BOLT FLANGE, SH., 6 X 10 | 1 | |
| 18 | 96001-06012-07 | BOLT, FLANGE, SH., 6 X 12 | 3 | |
