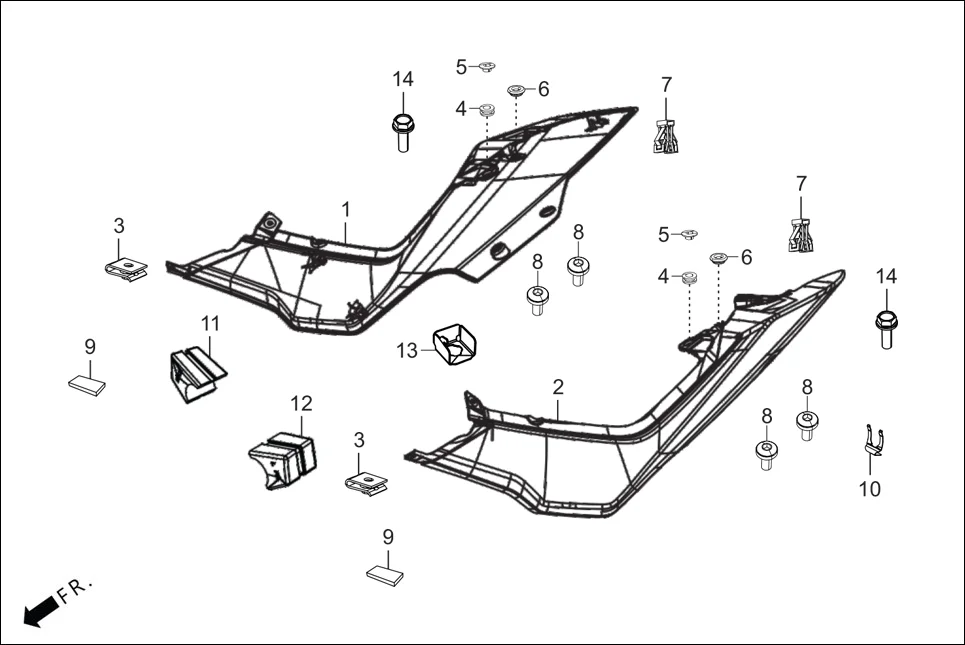

F-14 - SIDE COVER
Hero XTREME 250R(Mar., 2025) · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | ACWAS6A0060ARG | SET SIDE COVER RH (PEARL RED) | 1 | |
| 1 | ACWAS6A0060AYG | SET SIDE COVER RH (PEARL BLACK) | 1 | |
| 1 | ACWAS6A0150ATG | SET SIDE COVER RH (FORCE SILVER ME.) | 1 | |
| 2 | ACWAS6A0070ARG | SET SIDE COVER LH (PEARL RED) | 1 | |
| 2 | ACWAS6A0070AYG | SET SIDE COVER LH (PEARL BLACK) | 1 | |
| 2 | ACWAS6A0160ATG | SET SIDE COVER LH (FORCE SILVER ME.) | 1 | |
| 3 | 90677-KAN-961 | NUT CLIP 5MM | 2 | |
| 4 | 18293-KTP-900 | RUBBER, PKG, PROTECTOR | 2 | |
| 5 | 83520-KTC-900 | COLLAR, UTILITY BOX | 2 | |
| 6 | 83163-ABA-000 | GROMMET CIL SIDE COVER | 2 | |
| 7 | 90666-ACD-000 | METAL CLIP SNAP FIT | 4 | |
| 8 | 90001-05014-03 | SOCKET BOLT SPL M5X14 | 4 | |
| 9 | 61309-KVE-860 | CUSHION WINDSCREEN | 2 | |
| 10 | 75581-ACD-000 | SET SPRING LOCK KEY | 1 | |
| 11 | ACWAB4E001000G | DAMPER COVER SIDE RH | 1 | |
| 12 | ACWAB4E002000G | DAMPER COVER SIDE LH | 1 | |
| 13 | ACWAB4U000000G | STAY CABLE LOCK SEAT | 1 | |
| 14 | 95701-06018-0C | BOLT FLANGE 6X18 | 2 | |
