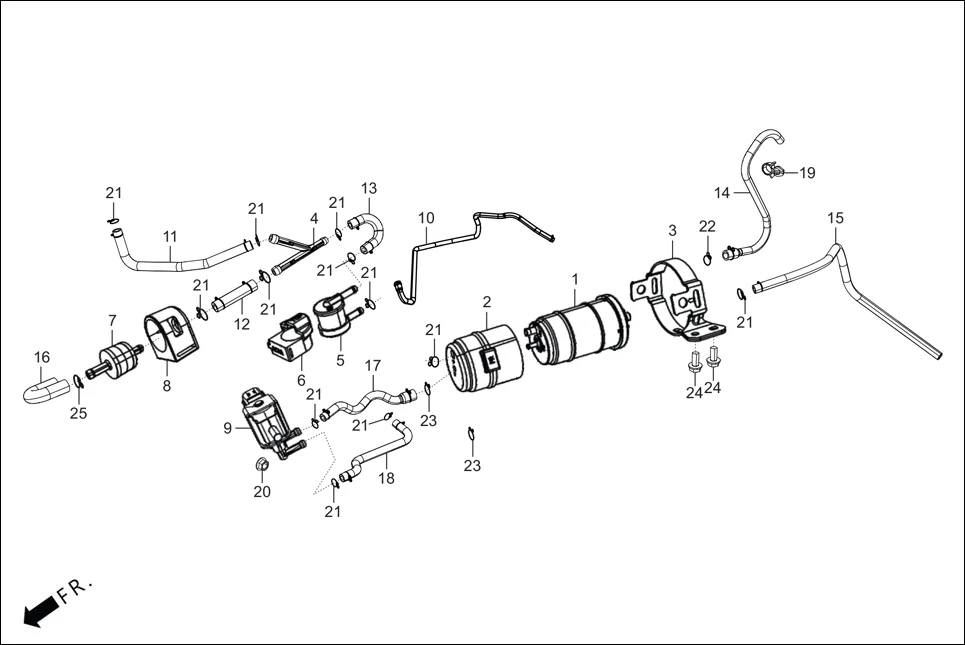

F-13A - FUEL TANK (CANISTER/TUBES)
Hero XTREME 250R(Mar., 2025) · 23 parts
Parts in This Assembly (23)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17410-AAM-001 | CANISTER COMP | 1 | |
| 2 | 17411-ACA-000 | SUSP CANISTER | 1 | |
| 3 | 17413-ACA-000 | CANISTER CLIP | 1 | |
| 4 | 17230-AAH-100 | JOINT 3 WAY | 1 | |
| 5 | 17420-AAD-A00 | ROLL OVER VALVE | 1 | |
| 6 | 17421-ACA-000 | SUSP ROLL OVER VALVE | 1 | |
| 7 | 17430-AAE-100 | ONE WAY VALVE | 1 | |
| 8 | 17431-AAH-A00 | SUSP. ONE WAY VALVE | 1 | |
| 9 | 17554-AAG-A01 | PURGE SOLENOID VALVE | 1 | |
| 10 | 1769A-ACW-000 | TUBE A PIPE BREATHER SUB ASSY | 1 | |
| 11 | 1769B-ACA-000 | TUBE A CANISTER SUB ASSEMBLY | 1 | |
| 12 | 1769D-ACA-000 | TUBE A J3W SUB ASSEMBLY | 1 | |
| 13 | 1769E-ACA-000 | TUBE B J3W SUB ASSEMBLY | 1 | |
| 14 | 1769G-ACA-000 | TUBE BREATHER CANISTER SUB ASSEMBLY | 1 | |
| 15 | 1769H-ACA-000 | TUBE DRAIN CANISTER SUB ASSEMBLY | 1 | |
| 16 | 17695-AAH-A00 | TUBE BREATHER OWV | 1 | |
| 17 | 1769K-ACA-000 | TUBE PURGE A SUB ASSEMBLY | 1 | |
| 18 | 1769M-ACA-000 | TUBE PURGE B SUB ASSEMBLY | 1 | |
| 19 | 43443-AAC-830 | CLIP CBS CABLE | 1 | |
| 21 | 95002-02080 | CLIP, TUBE | 12 | |
| 22 | 95002-02130 | CLIP B 12.5 TUBE | 1 | |
| 23 | 95002-02100 | CLIP, B-10 TUBE | 2 | |
| 25 | 95002-0208W | CLIP TUBE | 1 | |
