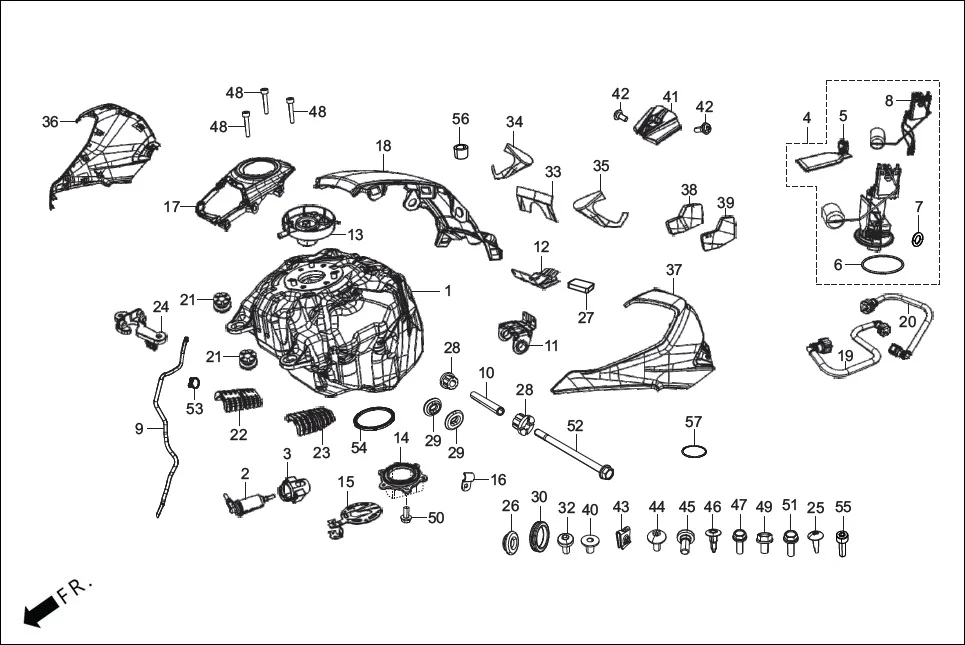

F-13 - FUEL TANK /CANISTER/TUBES
Hero XTREME 250R(Mar., 2025) · 62 parts
Parts in This Assembly (62)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17510-ACW-000 | TANK COMP FUEL | 1 | |
| 2 | 16410-ACA-000 | FUEL FILTER | 1 | |
| 3 | 16411-ACA-000 | SUSP EXTERNAL FILTER | 1 | |
| 4 | 16700-ACW-001 | UNIT ASSY FUEL PUMP | 1 | |
| 5 | 16701-ACW-001 | FUEL PUMP FILTER | 1 | |
| 6 | 16702-ACA-000 | FUEL PUMP FLANGE O RING | 1 | |
| 7 | 16702-ACD-002 | FUEL PUMP FILTER O RING | 1 | |
| 8 | 37800-ACW-001 | UNIT ASSY FUEL | 1 | |
| 9 | 1719A-ACW-000 | TUBE DRAIN SUB ASSY | 1 | |
| 10 | 17313-ACA-000 | COLLAR REAR FUEL TANK | 1 | |
| 11 | 17502-ACW-000 | TANK MOUNTING REAR | 1 | |
| 12 | 17503-ACW-000 | STAY SEAT GUIDE ASSY | 1 | |
| 13 | 17504-ACW-000 | PLASTIC FUEL FILLER COMP | 1 | |
| 14 | 17507-ACW-000 | INTERMEDIATE PLATE | 1 | |
| 15 | 17508-ACW-000 | PLATE SETTING | 1 | |
| 16 | 17509-ACW-000 | BREATHER TUBE GUIDE CLIP | 1 | |
| 17 | 17530-ACW-000L | TANK COVER FR (MAT AXIS GRAY ME.) | 1 | |
| 18 | 17550-ACW-000A | TANK COVER RR (PEARL RED) | 1 | |
| 18 | 17550-ACW-000D | TANK COVER RR (FORCE SILVER ME.) | 1 | |
| 18 | 17550-ACW-000E | TANK COVER RR (PEARL BLACK) | 1 | |
| 19 | 17574-ACW-000 | HOSE COMP FUEL A | 1 | |
| 20 | 17575-ACW-000 | HOSE COMP FUEL B | 1 | |
| 21 | 17622-ABZ-B00 | GROMMET FUEL TANK | 2 | |
| 22 | 50328-ACW-000 | DAMPER R TANK COMP FUEL | 1 | |
| 23 | 50329-ACW-000 | DAMPER L TANK COMP FUEL | 1 | |
| 24 | 61314-ACW-000 | USB CHARGER STAY | 1 | |
| 25 | 93903-34210 | SCREW TAPPING 4X10 | 2 | |
| 26 | 83163-ABA-000 | GROMMET CIL SIDE COVER | 2 | |
| 27 | 83407-ABR-000 | CUSHION TANK BOTTOM | 1 | |
| 28 | 83408-ACA-000 | CUSHION REAR FUEL TANK | 2 | |
| 29 | 83551-300-000 | GROMMET, AIR CLEANER CASE | 2 | |
| 30 | 83557-ACW-000 | GROMMET OVER FLOW BOTTLE | 1 | |
| 31 | 83601-MN5-000 | GROMMET SIDE COVER | 2 | |
| 32 | 90001-05012-03 | SOCKET BOLT SPL M5X12 | 4 | |
| 33 | ACWAB4A001000G | FILM PROTECTOR TANK FUEL | 1 | |
| 34 | ACWAB4A002000G | FILM PROTECTOR TANK FUEL RH | 1 | |
| 35 | ACWAB4A003000G | FILM PROTECTOR TANK FUEL LH | 1 | |
| 36 | ACWAS6A0040ARG | SET TANK COVER SIDE RH (PEARL RED) | 1 | |
| 36 | ACWAS6A0130ATG | SET TANK COVER SIDE RH (FORCE SILVER ME.) | 1 | |
| 36 | ACWAS6A0040AYG | SET TANK COVER SIDE RH (PEARL BLACK) | 1 | |
| 37 | ACWAS6A0050ARG | SET TANK COVER SIDE LH (PEARL RED) | 1 | |
| 37 | ACWAS6A0140ATG | SET TANK COVER SIDE LH (FORCE SILVER ME.) | 1 | |
| 37 | ACWAS6A0050AYG | SET TANK COVER SIDE LH (PEARL BLACK) | 1 | |
| 38 | ACWAB4A013000G | DAMPER COVER TANK RH | 1 | |
| 39 | ACWAB4A014000G | DAMPER COVER TANK LH | 1 | |
| 40 | ACWAB4A015000G | COLLAR COVER FRONT | 2 | |
| 41 | 17540-ACW-000L | BATTERY COVER (MAT AXIS GRAY ME.) | 1 | |
| 42 | 90101-05012-0D | SCREW HINGE PATCH | 7 | |
| 43 | 90320-GC3-000 | NUT, SPRING, M5 | 10 | |
| 44 | SFBLDA001G | BOLT STUD ALLEN M6X1.0X15X8.8_N | 1 | |
| 45 | 90683-AAW-300 | CLIP TRIM. | 2 | |
| 47 | 95701-06018-0C | BOLT FLANGE 6X18 | 1 | |
| 48 | 96700-04025-0F | BOLT SOCKET 4X25 | 3 | |
| 49 | 95701-06010-0F | BOLT FLANGE 6X10 | 5 | |
| 50 | 95701-06014-0F | BOLT FLANGE 6X14 | 2 | |
| 51 | 95701-08035-0D | BOLT FLANGE 8X35 | 2 | |
| 52 | 95701-08130-01 | BOLT FLANGE M8X130 | 1 | |
| 53 | 95002-0213W | CLIP B12.5 TUBE | 1 | |
| 54 | 91305-ACW-000 | SEALING GASKET INTERMEDIATE PLATE | 1 | |
| 55 | 90076-ACW-000 | BOLT SOCKET M4X14 | 6 | |
| 56 | 90312-KTP-900 | COLLAR, M6 | 1 | |
| 57 | 91306-ACW-000 | O RING | 1 | |
