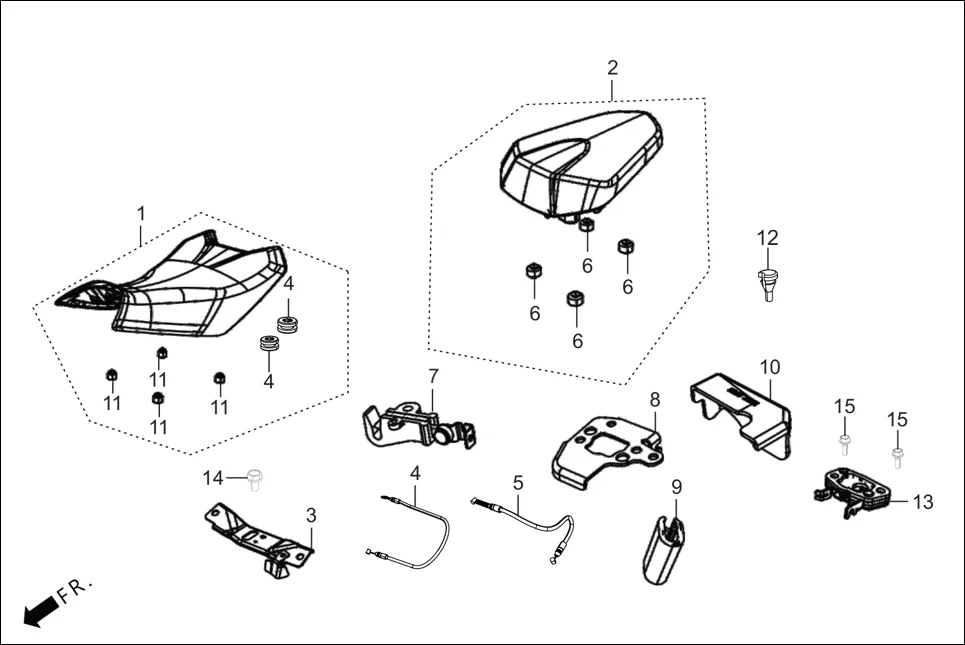

F-12A - SEAT ASSY.
Hero XTREME 250R(Mar., 2025) · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77100-ACW-000 | SEAT COMP RIDER | 1 | |
| 2 | 77300-ACW-000 | SEAT COMP PILLION | 1 | |
| 3 | 50452-ACW-000 | STAY SEAT CABLE | 1 | |
| 4 | 77156-ACW-000 | CABLE SEAT LOCK (FRONT) | 1 | |
| 5 | 77157-ACW-000 | CABLE SEAT LOCK(REAR) | 1 | |
| 6 | 77206-KG8-900 | RUBBER, SEAT SETTING | 4 | |
| 7 | 77221-KVE-860 | HOOK SEAT CATCH | 1 | |
| 8 | ACWAB0A005000G | STAY CABLE LOCK SEAT | 1 | |
| 9 | ACWAB0A008000G | BEADING RUBBER | 1 | |
| 10 | ACWAB4U001000G | COVER CABLE LOCK SEAT | 1 | |
| 11 | ACWAB4U002000G | GROMMET SEAT | 4 | |
| 12 | 50137-AAR-000 | PLUG CABLE RETENTION | 1 | |
| 13 | ACWAB0A006000G | BRACKET D LOCK SEAT COMP | 1 | |
| 14 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 1 | |
| 15 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 2 | |
