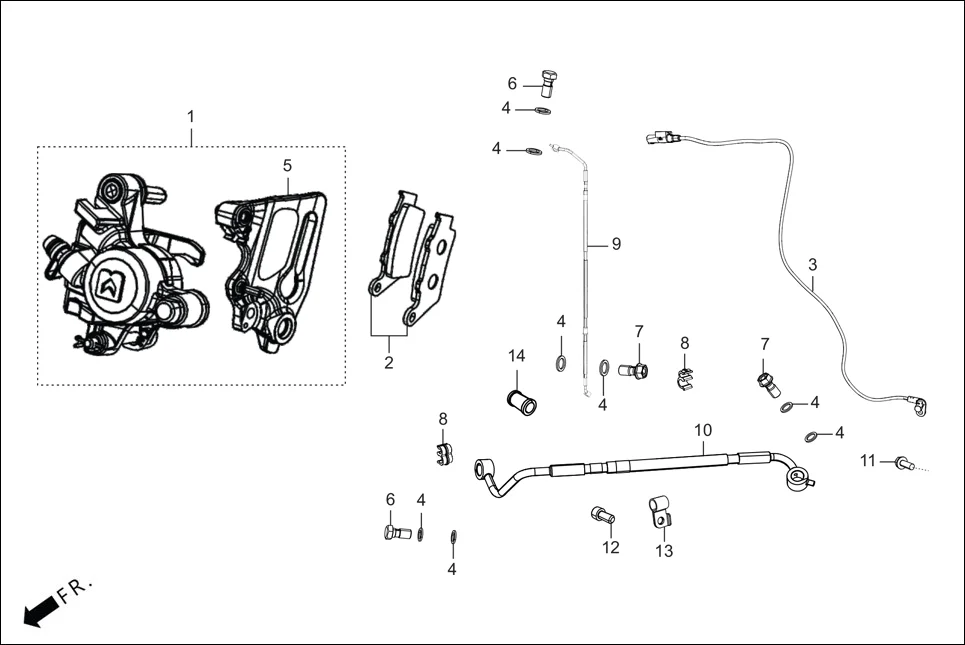

F-10A - REAR BRAKE (CALIPER ASSY.)
Hero XTREME 250R(Mar., 2025) · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 43250-ACJ-000 | CALIPER SUB ASSY RR | 1 | |
| 2 | 06435-ACA-000 | BRAKE PAD | 1 | |
| 3 | 37520-RAA-000 | SENSOR REAR WHEEL SPEED | 1 | |
| 4 | 90545-ABZ-000 | WASHER OIL BOLT | 8 | |
| 5 | 43190-ACA-000 | BRACKET ASSEMBLY | 2 | |
| 6 | 90042-AAB-A00 | BANJO BOLT M10X1 | 2 | |
| 7 | 90145-RAA-000 | OIL BOLT 10X22 | 2 | |
| 8 | 43301-AAB-A00 | CLIP BRAKE LINE | 2 | |
| 9 | 43310-ACW-000 | BRK HOSE ASSY HECU TO CALIPER RR | 1 | |
| 10 | 43327-ACW-000 | BRK HOSE ASSY RR MASTER CYLINDER TO HECU | 1 | |
| 11 | 95701-06018-0D | BOLT FLANGE 6X18 | 1 | |
| 12 | 96700-06012-0F | BOLT SOCKET 6X12 | 1 | |
| 13 | 45154-ACF-000 | CLAMPER FR BRAKE HOSE | 1 | |
| 14 | 46427-ACD-000 | RUBBER HOSE CLAMP | 1 | |
