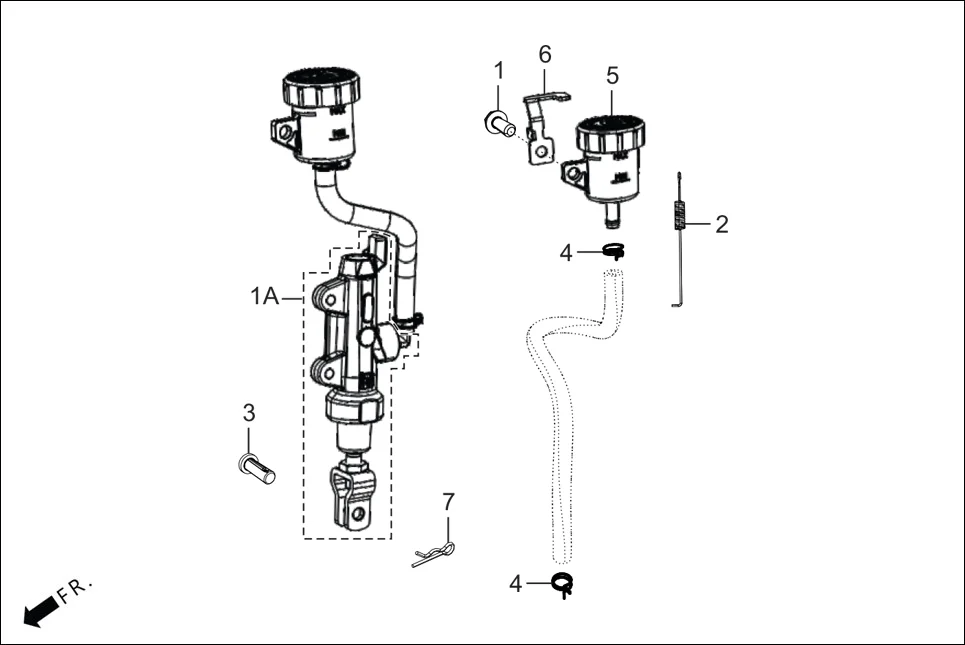

F-10 - REAR BRAKE (MASTER CYLINDER)
Hero XTREME 250R(Mar., 2025) · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 95701-06014-0F | BOLT FLANGE 6X14 | 1 | |
| 1 | 43506-ACD-000 | M/C RR BRAKE | 1 | |
| 2 | 35357-ABA-000 | SPRING, STOP SWITCH | 1 | |
| 3 | 95015-RAA-000 | PIN MASTER CYL JOINT | 1 | |
| 4 | 43514-AAN-G00 | CLIP, ACTUATOR HOSE | 2 | |
| 5 | 43550-AAZ-310 | RESERVOIR COMP RR | 1 | |
| 6 | 43551-ACA-000 | BRACKET RESERVOIR | 1 | |
| 7 | 94252-06D00 | PIN LOCK 6MM | 1 | |
