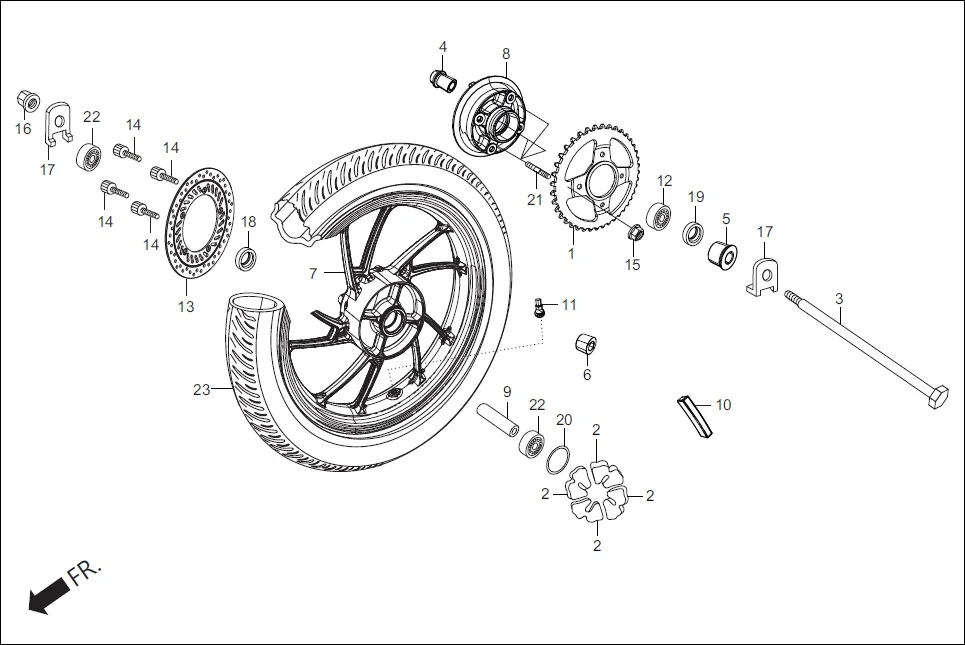

F-9 - RR WHEEL /FLANGE ASSY. DRIVEN
Hero Xtreme 200S (May, 2019) · 26 parts
Parts in This Assembly (26)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 41201-AAB-A00 | SPROCKET FINAL DRIVEN 37T | 1 | |
| 2 | 41241-KSP-900 | DAMPER, RR WHEEL | 4 | |
| 3 | 42301-AAB-A00 | AXLE RR WHEEL | 1 | |
| 4 | 42303-AAB-A00 | SLEEVE REAR WHEEL | 1 | |
| 5 | 42311-AAB-A00 | COLLAR RR WHEEL SIDE(LH) | 1 | |
| 6 | 42313-KRY-970 | COLLAR RR. BRAKE SIDE | 1 | |
| 7 | K42426AABMA00S | KIT, WHEEL COMP. REAR | 1 | |
| 8 | 42611-KRY-930 | FLANGE, FINAL DRIVEN(NH-35M) | 1 | |
| 9 | 42620-AAR-000 | COLLAR RR AXLE DISTANCE | 1 | |
| 10 | 42703-AAB-A00 | WEIGHT BALANCE 5 | 1 | |
| 10 | 42704-AAB-A00 | WEIGHT BALANCE 10 | 1 | |
| 10 | 42705-AAB-A00 | WEIGHT BALANCE 20 | 1 | |
| 10 | 42707-AAB-A00 | WEIGHT BALANCE 15 | 1 | |
| 11 | 42753-KWF-90099 | RIM VALVE | 1 | |
| 12 | 96150-60050-10 | BEARING, BALL RADIAL, 6005 | 1 | |
| 13 | 43251-KVN-971 | DISC,RR BRAKE | 1 | |
| 14 | 90105-KL8-741 | BOLT, FR.DISK, 8 X 24 | 4 | |
| 15 | 90304-KCS-920 | NUT`U 10 MM | 4 | |
| 16 | 90305-KVN-900 | NUT, FLG. PT. 14 MM | 1 | |
| 17 | 90560-KVE-900 | WASHER, R RR. AXLE | 2 | |
| 18 | 91253-KSP-901 | DUST SEAL, 30 X 47 X 8 | 1 | |
| 19 | 91257-230-003 | OIL SEAL 28X42X7 | 1 | |
| 20 | 91352-KSP-900 | O RING, 51 X 2 | 1 | |
| 21 | 92915-10025-0E | BOLT, STUD II, 10X25 | 4 | |
| 22 | 96140-63020-10 | BRG., BALL RADIAL, 6302 (U) | 2 | |
| 23 | 42711-AAB-A01 | TYRE, RR (MRF) | 1 | |
