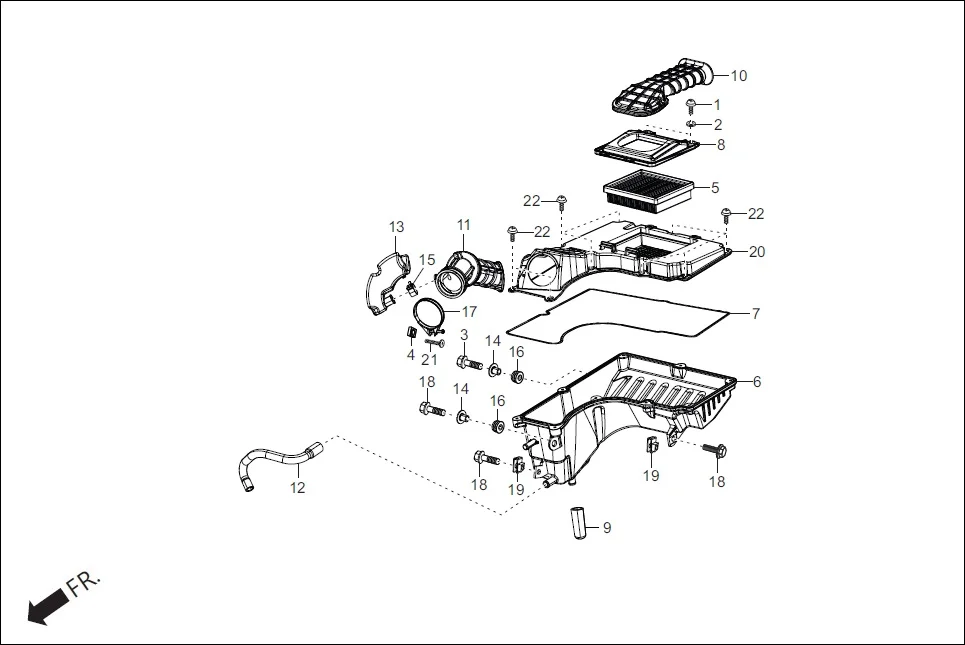

F-13 - AIR CLEANER
Hero Xtreme 200S (May, 2019) · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 93500-05016-0A | SCREW, PAN, 5 X 16 | 2 | |
| 2 | 94101-05000 | WASHER , PLAIN, 5MM | 2 | |
| 4 | 16222-MV4-300 | NUT, SQUARE, 5 MM | 1 | |
| 5 | 17208-AAB-A00 | ELEMENT COMP AIR/C | 1 | |
| 6 | 17210-AAB-A00 | CASE SUB ASSY A/C | 1 | |
| 7 | 17214-AAB-A00 | SEAL B AIR CLEANER | 1 | |
| 8 | 17225-AAB-A00 | COVER SUB ASSY A/C | 1 | |
| 9 | 17227-ABA-000 | V.TUBE 11X15X40 | 2 | |
| 10 | 17251-AAB-A00 | DUCT AIR/C | 1 | |
| 11 | 17253-AAB-A00 | TUBE AIR/C CONNECTOR | 1 | |
| 12 | 17371-AAB-A01 | TUBE BREATHER | 1 | |
| 13 | 17410-AAB-A00 | RESONATOR | 1 | |
| 14 | 19052-KV0-000 | COLLAR, RADIATOR MTG | 2 | |
| 15 | 19509-GE2-003 | CLAMP, D19 TUBE | 1 | |
| 16 | 83545-KCJ-690 | RUBBER, SIDE COVER | 2 | |
| 17 | 95018-58320 | BAND 58 AIR/C CONN TUBE | 1 | |
| 20 | 17235-AAB-A00 | SEPARATE SUB ASSY | 1 | |
| 21 | 93500-05025-0G | SCREW PAN 5X25 | 1 | |
| 22 | 93903-25380 | SCREW TAPPING 5X16 | 9 | |
