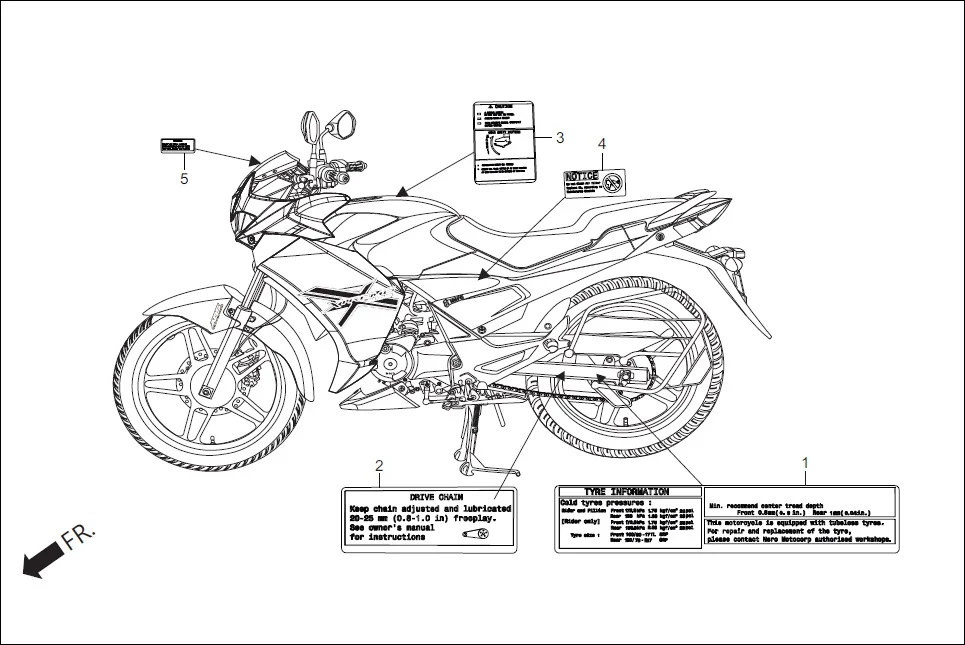

F-30 - CAUTION/LABEL
Hero Xtreme 200S (May, 2019) · 5 parts
Parts in This Assembly (5)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 87505-AAB-A00 | LABEL TYRE | 1 | |
| 2 | 87507-AAB-A00 | LABEL DRIVE CHAIN | 1 | |
| 3 | 87560-AAB-H00 | LABEL DRIVE | 1 | |
| 4 | 87509-AAP-000 | LABEL AIR/C ELEMENT NOTICE | 1 | |
| 5 | 87522-MAB-600 | LABEL, VISOR CAUTION | 1 | |
