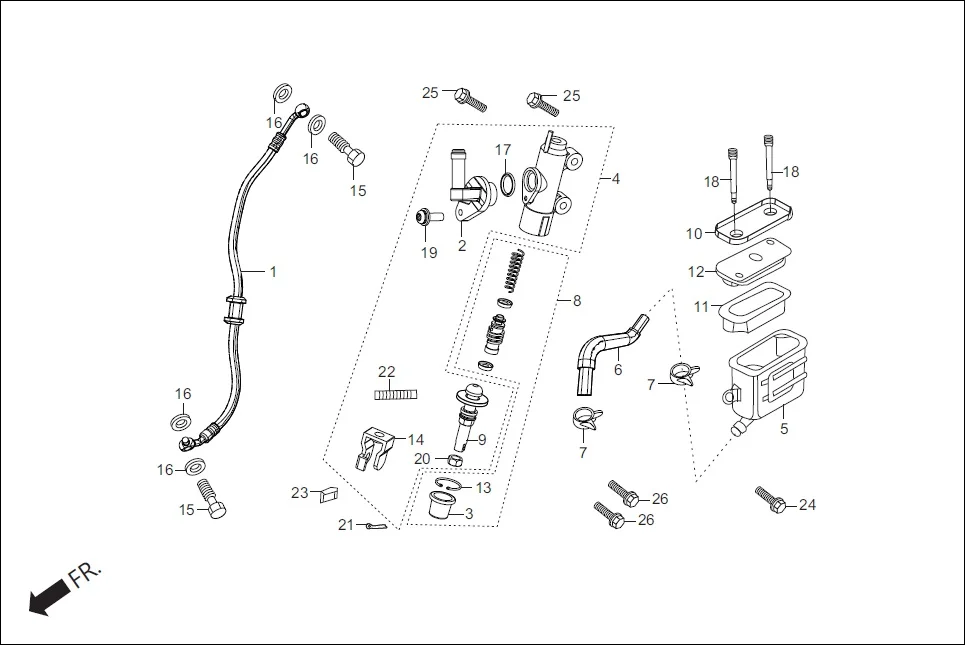

F-8 - REAR BRAKE (MASTER CYL.)
Hero Xtreme 200S (May, 2019) · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 43310-AAB-A00 | HOSE COMP RR BRAKE | 1 | |
| 2 | 43503-MEE-006 | CONNECTOR | 1 | |
| 3 | 43504-MB2-006 | BOOT COMP. | 1 | |
| 4 | 43510-KRY-971 | M/C SUB ASSY REAR | 1 | |
| 5 | 43511-KW7-881 | OIL CUP COMP. | 1 | |
| 6 | 43512-AAB-A00 | HOSE COMP RR M/C | 1 | |
| 7 | 43514-KS6-701 | CLAMP. M/C OIL HOSE | 2 | |
| 8 | 43520-MJ6-315 | PISTON SET M/C | 1 | |
| 9 | 43530-MV9-006 | PUSH ROD COMP. | 1 | |
| 10 | 45513-GW0-911 | CAP M/C | 1 | |
| 11 | 45520-GW0-911 | DIAPHRAGM | 1 | |
| 12 | 45521-GW0-911 | PLATE DIAPHRAGM | 1 | |
| 13 | 46182-MEL-D21 | CIRCLIP | 1 | |
| 14 | 46504-KV6-702 | JOINT BRK ROD | 1 | |
| 17 | 91212-422-006 | O RING | 1 | |
| 18 | 93600-04045-1G | SCREW FLAT 4X45 | 2 | |
| 21 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 1 | |
| 22 | 94305-20102 | PIN SPRING 2X10 | 1 | |
| 23 | 95015-54000 | PIN D JOINT | 1 | |
