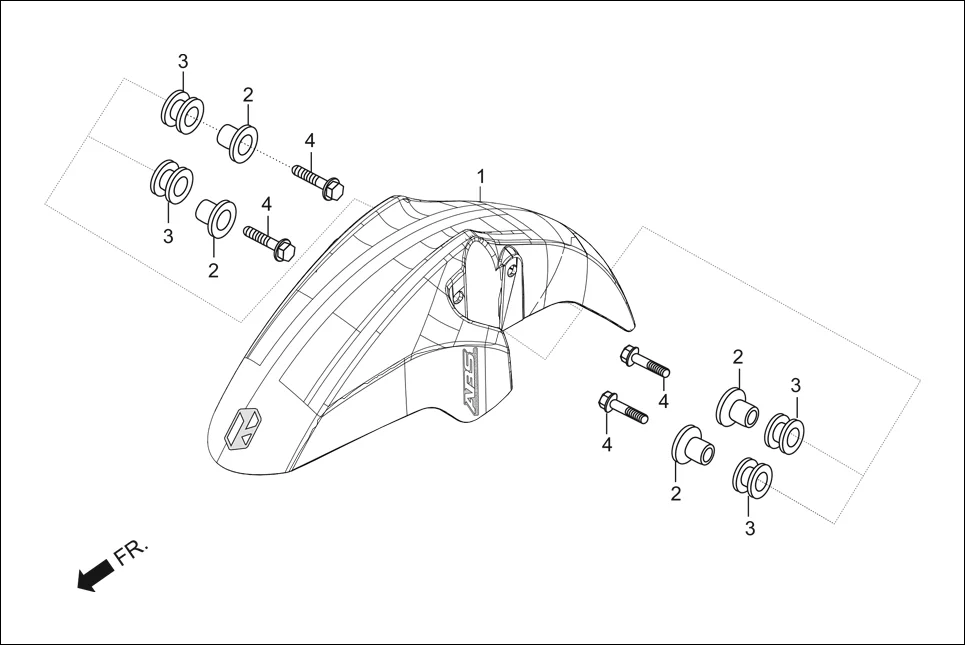

F-5 - FRONT FENDER (ABS)
Hero Xtreme 200S (May, 2019) · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61000-AAB-D00R | SET ILLUST FENDER FRONT (PANTHER BLACK ME.) | 1 | |
| 1 | 61000-AAB-D00T | SET ILLUST FENDER FRONT (MAPLE BROWN ME.) | 1 | |
| 1 | 61000-AAB-D00U | SET ILLUST FENDER FRONT (SPORTS RED) | 1 | |
| 2 | 61103-KRY-900 | COLLAR, A FR.FENDER | 4 | |
| 3 | 61105-KTC-900 | RUBBER, FRONT FENDER MOUNTING | 4 | |
| 4 | 95701-06022-00 | BOLT, FLANGE, SH. 6 X 22 | 4 | |
