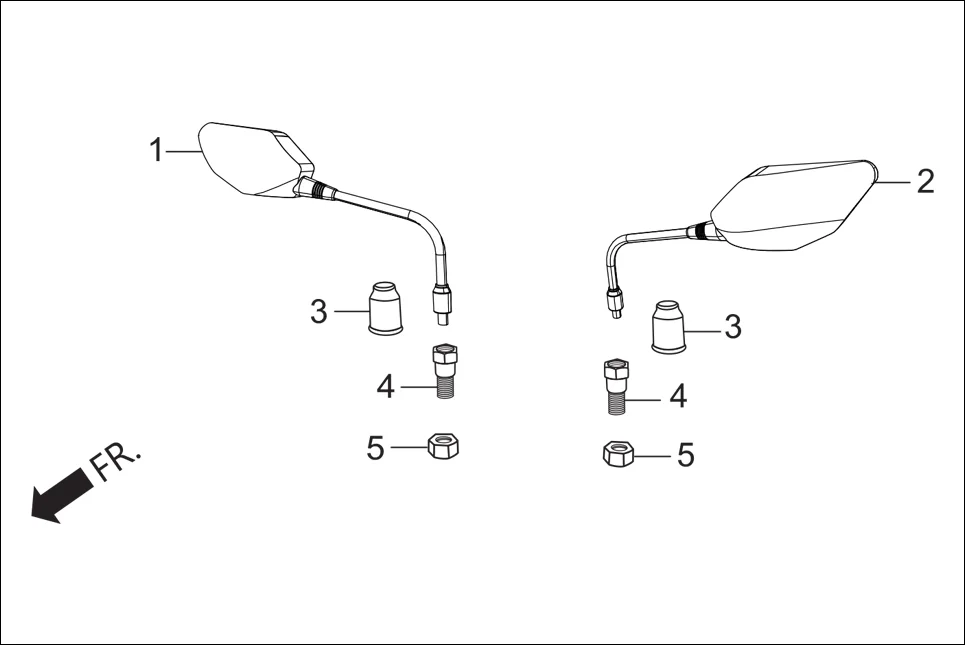

F-3A - MIRROR ASSY.
Hero Xtreme 200S (May, 2019) · 5 parts
Parts in This Assembly (5)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 88110-AAB-A000 | MIRROR ASSY R BACK | 1 | |
| 2 | 88120-AAB-A000 | MIRROR ASSY L BACK | 1 | |
| 3 | 88114-198-D10 | CAP, LOCK NUT | 2 | |
| 4 | 90003-MY5-720 | BOLT,ADPT.10MM | 2 | |
| 5 | 90201-MW3-620 | NUT, HEX., 10MM | 2 | |
