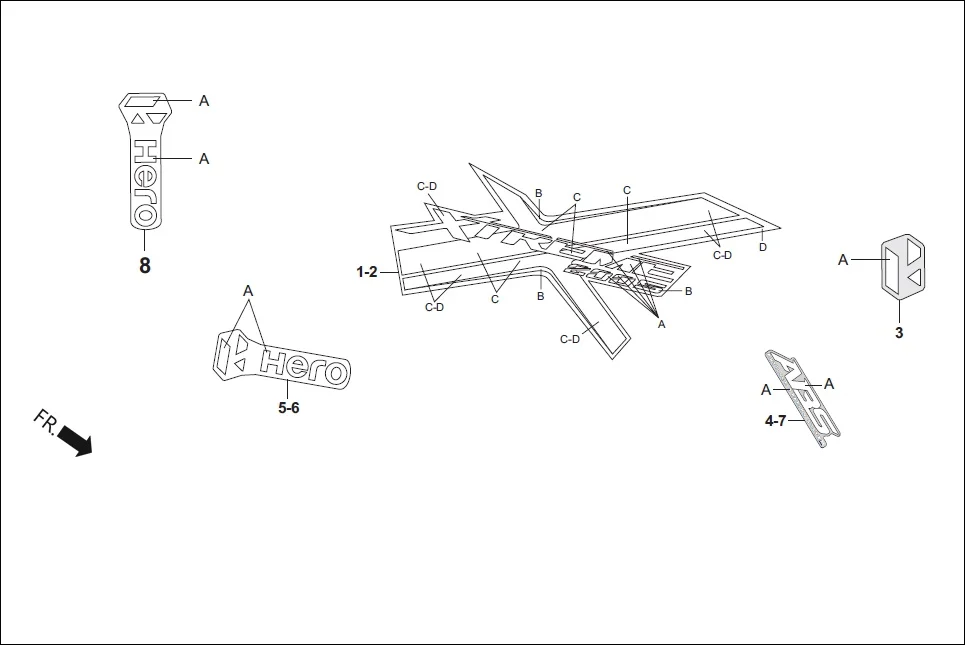

F-27 - STRIPE/ MARKS
Hero Xtreme 200S (May, 2019) · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 86271-AAB-D00R | STRIPE FAIRING SIDE R (TYPE-1) | 1 | |
| 1 | 86271-AAB-D00T | STRIPE FAIRING SIDE R (TYPE-2) | 1 | |
| 1 | 86271-AAB-D00U | STRIPE FAIRING SIDE R (TYPE-3) | 1 | |
| 2 | 86272-AAB-D00R | STRIPE FAIRING SIDE L (TYPE-1) | 1 | |
| 2 | 86272-AAB-D00T | STRIPE FAIRING SIDE L (TYPE-2) | 1 | |
| 2 | 86272-AAB-D00U | STRIPE FAIRING SIDE L (TYPE-3) | 1 | |
| 3 | 86776-AAB-D00R | MARK HERO FR FENDER (TYPE-1) | 1 | |
| 3 | 86776-AAB-D00T | MARK HERO FR. FENDER | 1 | |
| 4 | 86780-AAB-D00R | MARK ABS FR FENDER RH (TYPE-1) | 1 | |
| 4 | 86780-AAB-A00S | MARK ABS FR FENDER RH TY-2 | 1 | |
| 5 | 86855-AAB-D00R | MARK HERO COVER A, R SIDE (TYPE-1) | 1 | |
| 5 | 86855-AAB-D00T | MARK HERO COVER A, R. SIDE | 1 | |
| 6 | 86856-AAB-D00R | MARK HERO COVER A, L SIDE (TYPE-1) | 1 | |
| 6 | 86856-AAB-D00T | MARK HERO COVER A, L. SIDE | 1 | |
| 7 | 86880-AAB-D00R | MARK ABS FR FENDER LH (TYPE-1) | 1 | |
| 7 | 86880-AAB-A00S | MARK ABS FR FENDER LH TY-2 | 1 | |
| 8 | 87277-AAB-D00R | MARK HERO COWL CENTER REAR (TYPE-1) | 1 | |
| 8 | 87277-AAB-D00T | MARK HERO COWL CENTER REAR | 1 | |
