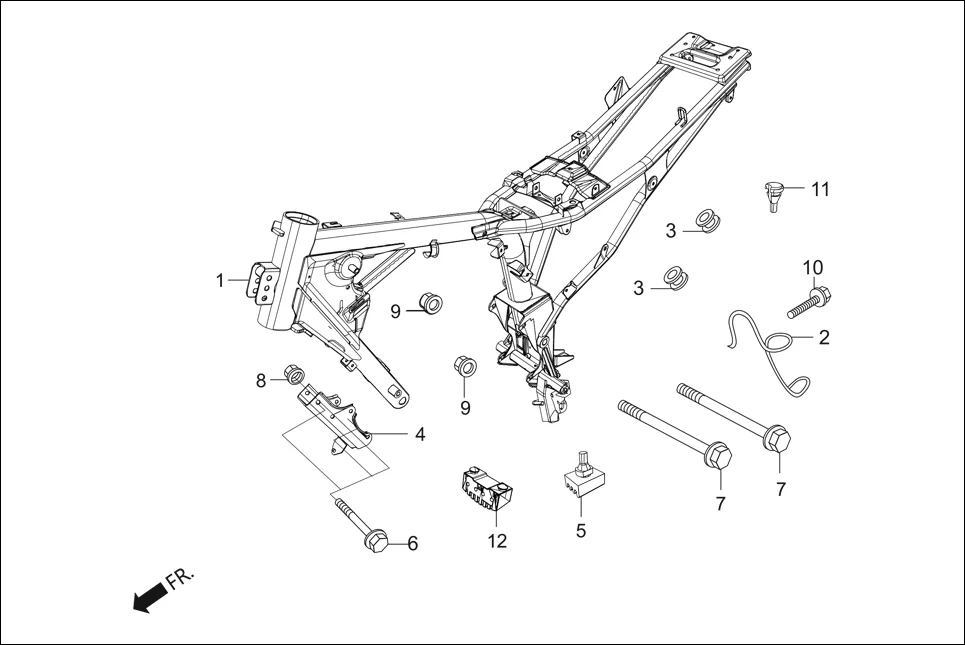

F-25 - FRAME BODY
Hero Xtreme 200S (May, 2019) · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50100-AAB-D00 | FRAME BODY COMP | 1 | |
| 2 | 50296-KVE-900 | GUIDE DRAIN HOSE | 1 | |
| 3 | 50328-KVN-900 | RUBBER, TANK MTG. | 2 | |
| 4 | 5035A-AAB-D00 | PLATE FR ENG HANGER ASSY | 1 | |
| 5 | 50505-KTN-700 | RUBBER, A STAND STOPPER | 1 | |
| 6 | 95801-08085-00 | BOLT, FLANGE, 8X85 | 3 | |
| 7 | 90019-399-010 | BOLT, FLANGE, 10 X 110 | 2 | |
| 11 | 50137-AAR-000 | PLUG CABLE RETENTION | 1 | |
| 12 | 50328-AAB-D00 | DAMPER TANK COMP FUEL | 1 | |
