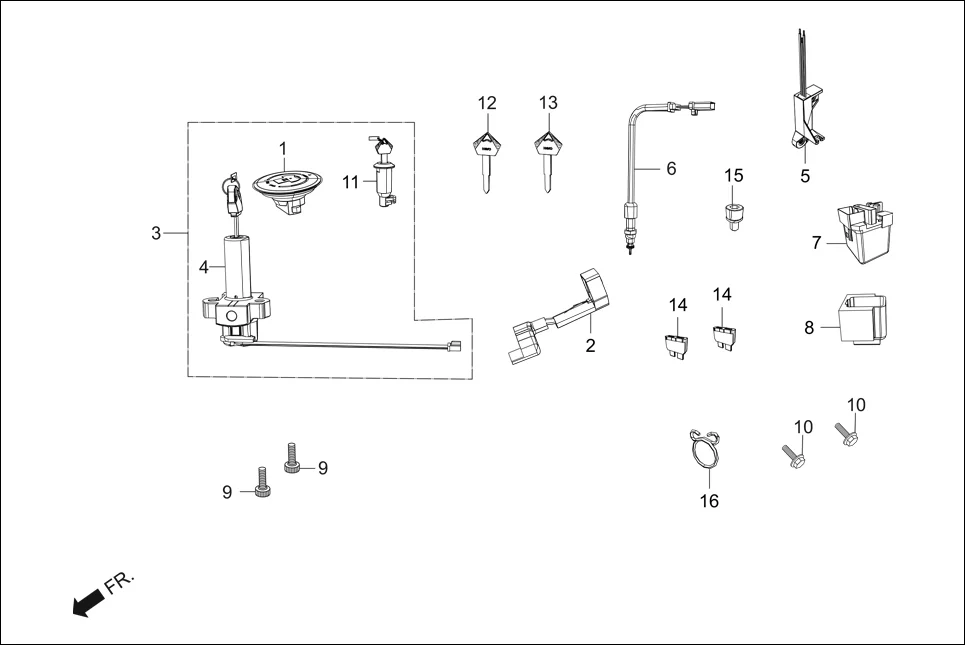

F-23 - SWITCH ASSY ./ RELAY / LOCK ASSY. / KEY BLANK
Hero Xtreme 200S (May, 2019) · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17620-AAB-H61 | CAP COMP FUEL FILLER | 1 | |
| 2 | 32401-AAB-A00 | CABLE ST MAG BATT | 1 | |
| 3 | 35010-AAB-D01 | KEY SET | 1 | |
| 4 | 35100-AAB-D01 | SW ASSY. COMB. & LOCK | 1 | |
| 5 | 35140-AAB-001 | SIDE STAND SWITCH | 1 | |
| 6 | 35350-KVE-930A | SWITCH ASSY, REAR STOP | 1 | |
| 7 | 35850-AAM-H01 | SW ASSY. START MAG | 1 | |
| 8 | 35856-AAB-A00 | RUBBER SHOCK | 1 | |
| 9 | 96600-08025-00 | SOCKET, BOLT, 8 X 25 | 2 | |
| 10 | 95701-05016-00 | BOLT FLANGE 5X16 | 2 | |
| 11 | 77239-AAB-H61 | KEY SEAT LOCK | 1 | |
| 12 | 35121-AAB-A01 | KEY BLANK NO 1 | 1 | |
| 13 | 35122-AAB-A01 | KEY BLANK NO 2 | 1 | |
| 14 | 98200-32000 | BLADE, FUSE, 20A | 2 | |
| 15 | 90111-MR5-000 | BOLT, SOCKET, 5X9 | 1 | |
| 16 | 90601-KAF-003 | CLIP, SW. COVER | 1 | |
