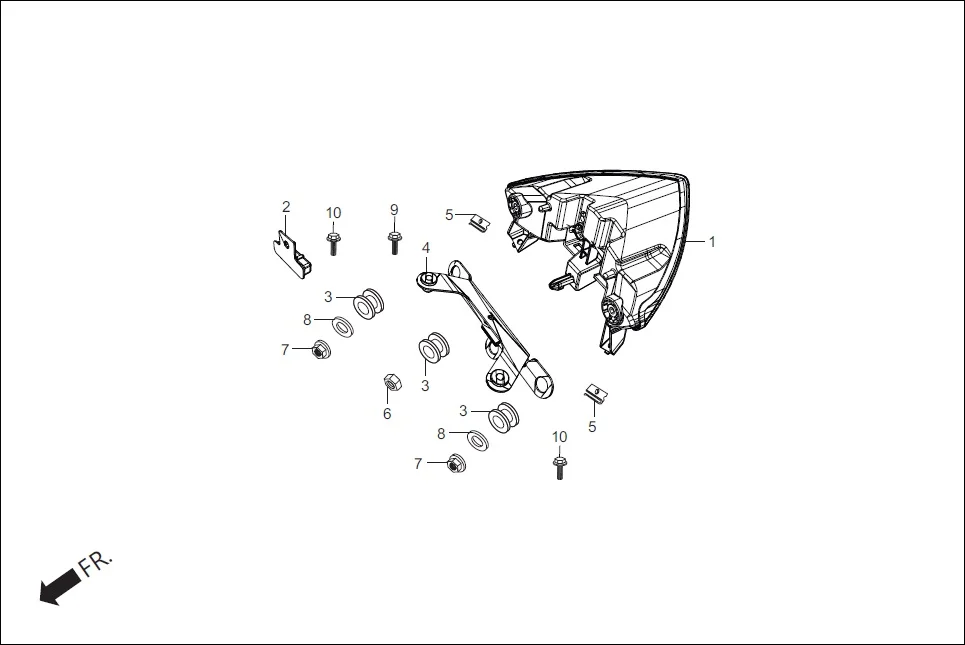

F-22 - TAIL LIGHT
Hero Xtreme 200S (May, 2019) · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33700-AAB-A01 | UNIT TAIL LIGHT | 1 | |
| 2 | 35400-KRY-970 | RESISTOR COMP. | 1 | |
| 3 | 77209-KAG-900 | RUBBER, SEAT STAY MOUNT | 3 | |
| 4 | 77232-AAB-A00 | BRKT TAIL LIGHT ASSY | 1 | |
| 5 | 90677-KAN-961 | NUT CLIP 5MM | 2 | |
| 6 | 94001-05070-0S | NUT HEX. 5MM | 1 | |
| 10 | 95701-06025-00 | BOLT, FLANGE, 6X 25 | 2 | |
