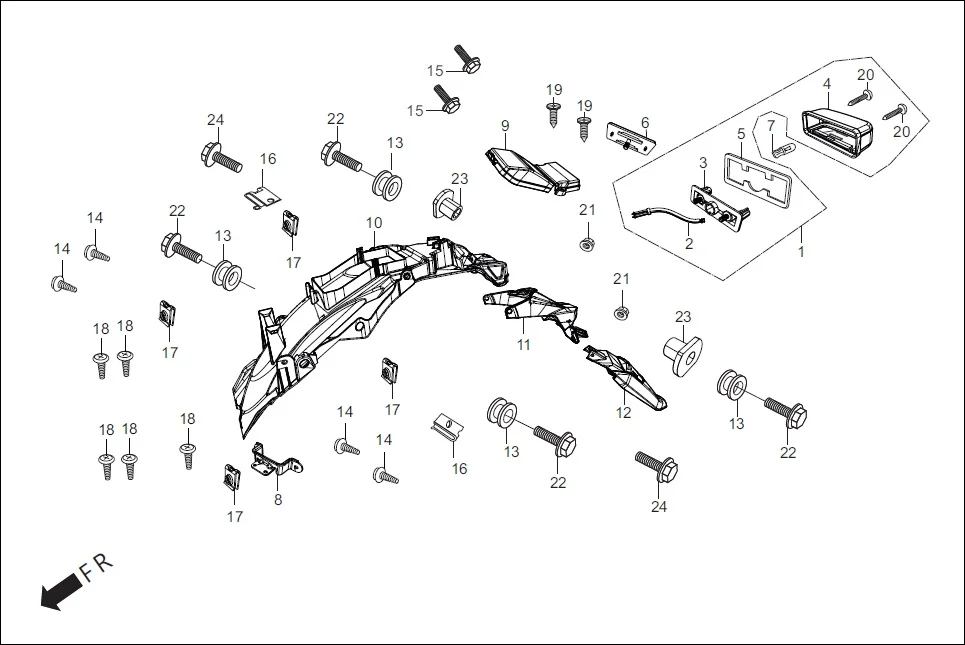

F-20 - REAR FENDER
Hero Xtreme 200S (May, 2019) · 24 parts
Parts in This Assembly (24)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 3372B-AAB-A01 | LIGHT ASSY LICENSE | 1 | |
| 2 | 33721-AAB-A01 | SOCKET COMP | 1 | |
| 3 | 33722-AAG-00099 | BASE COMP | 1 | |
| 4 | 33723-AAG-00099 | COVER COMP | 1 | |
| 5 | 33729-MCZ-003 | PACKING, LENS | 1 | |
| 6 | 33743-AAR-001 | REFLEX REFLECTOR SIDE | 1 | |
| 7 | 33301-KVE-900 | BULB, WEDGE BASE (T10, 12V-5W) | 1 | |
| 8 | 50186-AAB-A00 | RR FENDER STAY | 1 | |
| 9 | 80102-AAB-A00 | COVER TOOL BOX | 1 | |
| 10 | 80120-AAB-A00 | REAR FENDER A | 1 | |
| 11 | 80130-AAB-A00 | REAR FENDER B | 1 | |
| 12 | 80150-AAB-A00 | REAR FENDER C | 1 | |
| 13 | 83551-GE2-000 | GROMMET, AIR CLENER CASE | 4 | |
| 14 | 90101-GE0-000 | SCREW, HINGE PATCH | 4 | |
| 15 | 90111-187-000 | BOLT, FLANGE. 6 MM | 2 | |
| 16 | 90311-MT3-000 | NUT, CLIP, 6 MM | 2 | |
| 17 | 90320-GC3-000 | NUT, SPRING, M5 | 4 | |
| 18 | 93903-24380 | SCREW TAPPING, 4 X 12 | 5 | |
| 19 | 93903-35280 | SCREW, TAPPING, 5 X 12 | 2 | |
| 20 | 93903-34380 | SCREW, TAPPING, 4X12 | 2 | |
| 21 | 94050-05000 | NUT FLANGE, 5 MM | 2 | |
| 22 | 95701-06016-00 | BOLT, FLANGE, 6X16 | 4 | |
| 23 | 90311-AAA-000 | NUT REAR FENDER | 2 | |
| 24 | 90111-06017-07 | BOLT FLANGE 6MM | 2 | |
