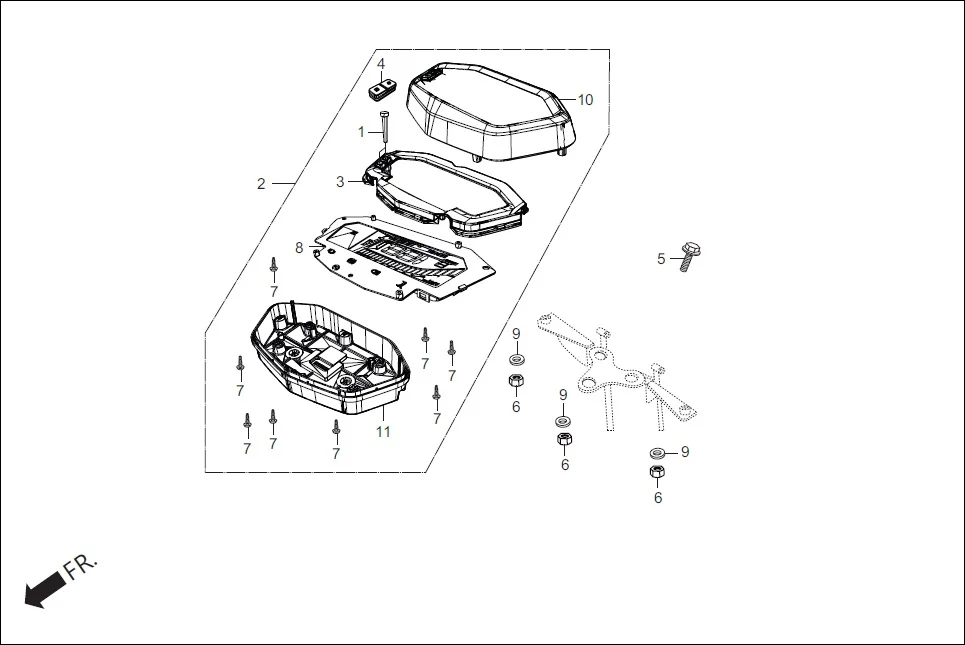

F-2 - SPEEDOMETER / CABLE
Hero Xtreme 200S (May, 2019) · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 37202-ABW-001 | KEY TOP | 2 | |
| 2 | 37100-AAB-D01 | METER ASSY. COMB | 1 | |
| 3 | 37611-ABW-001 | REFLECTOR ASSY | 1 | |
| 4 | 37203-ABW-001 | SW RUBBER | 1 | |
| 5 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 1 | |
| 6 | 94001-06070-0S | NUT, HEX., 6 MM | 3 | |
| 7 | 93903-22480 | SCREW TAPPING 3 X 16 | 8 | |
| 9 | 94103-06700 | WASHER, PLAIN, 6 MM | 3 | |
| 10 | 37612-ABW-001 | UPPER CASE ASSY | 1 | |
| 11 | 37610-ABW-001 | LOWER CASE ASSY | 1 | |
