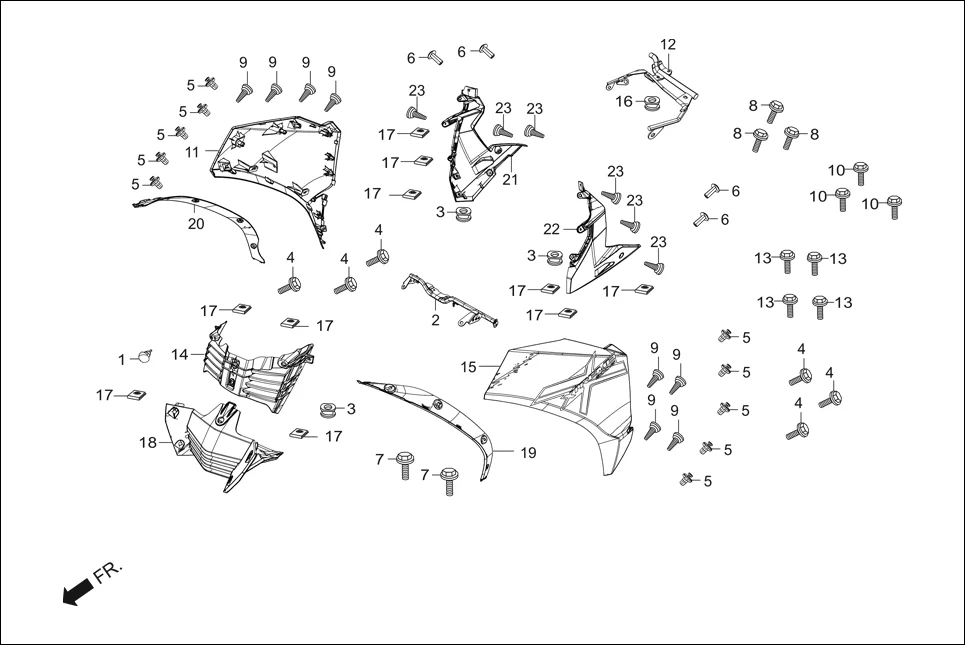

F-1B - FAIRING (FR. VISOR/COWL/STAY)
Hero Xtreme 200S (May, 2019) · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 80145-AAW-000 | RUBBER STOPPER | 1 | |
| 2 | 64523-ACN-000 | SUPPORT SIDE FAIRING CENTER | 1 | |
| 3 | 61105-KTC-900 | RUBBER, FRONT FENDER MOUNTING | 3 | |
| 5 | 90683-AAB-D00 | CLIP TRIM | 10 | |
| 6 | 90107-AAY-400 | BOLT, BODY COVER SET | 4 | |
| 7 | 95801-08040-00 | BOLT,FLANGE,8 X 40 | 2 | |
| 8 | 90111-187-000 | BOLT, FLANGE. 6 MM | 3 | |
| 10 | 95701-08020-00 | BOLT, FLANGE, 8X20 | 3 | |
| 11 | 64400-AAB-D00R | SET ILLUST FAIRING SIDE R (PANTHER BLACK ME.) | 1 | |
| 11 | 64400-AAB-D00T | SET ILLUST FAIRING SIDE R (MAPLE BROWN ME.) | 1 | |
| 11 | 64400-AAB-D00U | SET ILLUST FAIRING SIDE R (SPORTS RED) | 1 | |
| 12 | 64311-AAB-D00 | STAY UNDER COWL | 1 | |
| 14 | 64349-AAB-D00 | FAIRING SIDE INNER | 1 | |
| 15 | 64500-AAB-D00R | SET ILLUST FAIRING SIDE L (PANTHER BLACK ME.) | 1 | |
| 15 | 64500-AAB-D00T | SET ILLUST FAIRING SIDE L (MAPLE BROWN ME.) | 1 | |
| 15 | 64500-AAB-D00U | SET ILLUST FAIRING SIDE L (SPORTS RED) | 1 | |
| 19 | 64249-AAB-D00 | FAIRING L SIDE INNER | 1 | |
| 20 | 64449-AAB-D00 | FAIRING R SIDE INNER | 1 | |
| 21 | 64320-AAB-D00 | COWL UNDER R | 1 | |
| 22 | 64330-AAB-D00 | COWL UNDER L | 1 | |
