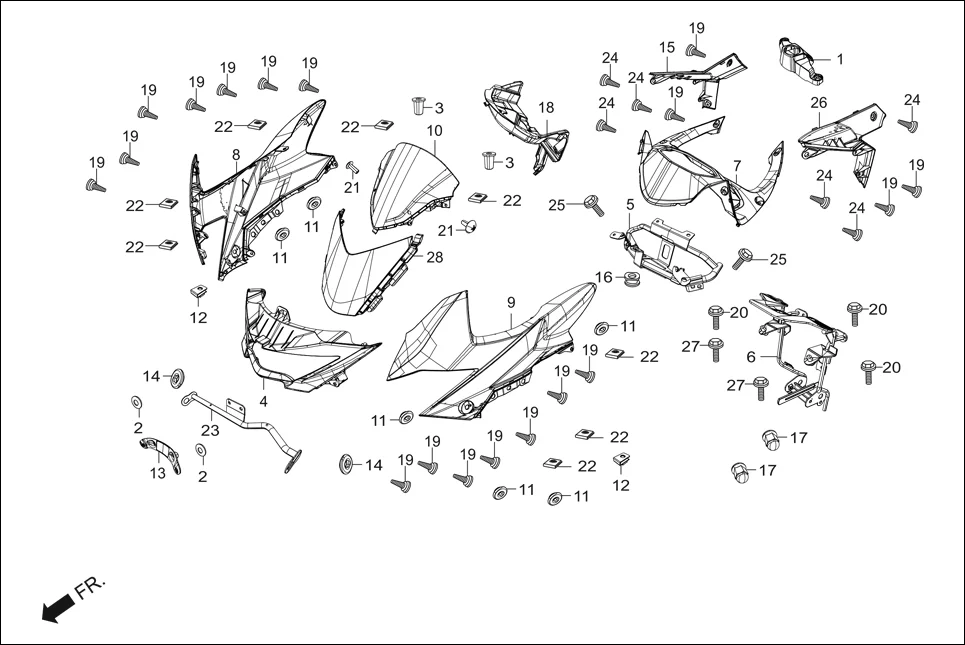

F-1A - FAIRING (FR. VISOR/COWL/STAY)
Hero Xtreme 200S (May, 2019) · 32 parts
Parts in This Assembly (32)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 53252-AAB-A00 | COVER MAIN SWITCH | 1 | |
| 2 | 90504-964-000 | WASHER, THRUST, 5MM | 2 | |
| 3 | 90111-KW3-000 | NUT COWL SET M5X0.8 | 2 | |
| 4 | 64302-AAB-D00 | HEAD LIGHT ORNAMENT | 1 | |
| 5 | 61311-AAB-D00 | HEADLIGHT SUPPORT BRACKET, UPPER | 1 | |
| 6 | 61312-AAB-D00 | HEADLIGHT SUPPORT BRACKET, LOWER | 1 | |
| 7 | 64305-AAB-D00 | DASH PANEL | 1 | |
| 8 | 64200-AAB-D00R | FAIRING FRONT RIGHT SIDE (PANTHER BLACK ME.) | 1 | |
| 8 | 64200-AAB-D00T | FAIRING FRONT RIGHT SIDE (MAPLE BROWN ME.) | 1 | |
| 8 | 64200-AAB-D00U | FAIRING FRONT RIGHT SIDE (SPORTS RED) | 1 | |
| 9 | 64250-AAB-D00R | FAIRING FRONT LEFT SIDE (PANTHER BLACK ME.) | 1 | |
| 9 | 64250-AAB-D00T | FAIRING FRONT LEFT SIDE (MAPLE BROWN ME.) | 1 | |
| 9 | 64250-AAB-D00U | FAIRING FRONT LEFT SIDE (SPORTS RED) | 1 | |
| 10 | 64140-AAB-D00 | SCREEN WIND | 1 | |
| 11 | 83601-MN5-000 | GROMMET SIDE COVER | 6 | |
| 12 | 90311-MT3-000 | NUT, CLIP, 6 MM | 2 | |
| 13 | 64315-AAB-D00 | STAY FR NO PLATE COMP | 1 | |
| 14 | 83551-300-000 | GROMMET, AIR CLEANER CASE | 2 | |
| 15 | 83527-AAB-D00 | SIDE ORNAMENT R | 1 | |
| 16 | 80101-443-000 | RUBBER, RR. FENDER CUSHION | 1 | |
| 17 | 90305-KSP-900 | NUT, 8MM EXP. | 2 | |
| 18 | 64329-AAB-D00 | COWL UNDER CENTER | 1 | |
| 20 | 90105-KVE-860 | BOLT,SPECIAL 6X22 | 3 | |
| 21 | 90109-SB6-000 | SCREW, TRUSS, 5X14 | 2 | |
| 22 | 90320-GC3-000 | NUT, SPRING, M5 | 8 | |
| 23 | 64340-AAB-D00 | BRKT. MTG. SIDE FAIRING BELLY PAN | 1 | |
| 24 | 93903-24380 | SCREW TAPPING, 4 X 12 | 6 | |
| 25 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
| 26 | 83528-AAB-D00 | SIDE ORNAMENT L | 1 | |
| 28 | 61301-AAB-D00R | FAIRING UP FRONT (PANTHER BLACK ME.) | 1 | |
| 28 | 61301-AAB-D00T | FAIRING UP FRONT (MBM,YR-305M) | 1 | |
| 28 | 61301-AAB-D00U | FAIRING UP FRONT (SRD, R-321) | 1 | |
