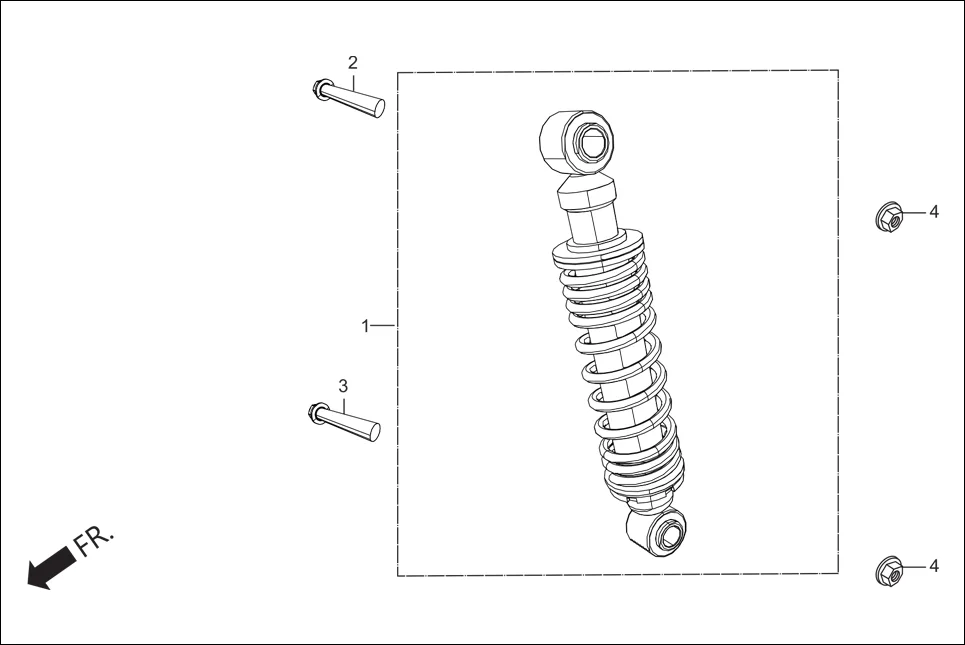

F-19 - CUSHION REAR
Hero Xtreme 200S (May, 2019) · 4 parts
Parts in This Assembly (4)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52400-AAB-A02 | CUSHION ASSY REAR | 1 | |
| 2 | 90154-AAB-A00 | BOLT FLANGE 10X55 | 1 | |
| 3 | 90159-AAB-A00 | BOLT FLANGE 10X50 | 1 | |
| 4 | 90304-KST-942 | NUT FLG.PT 10MM | 2 | |
