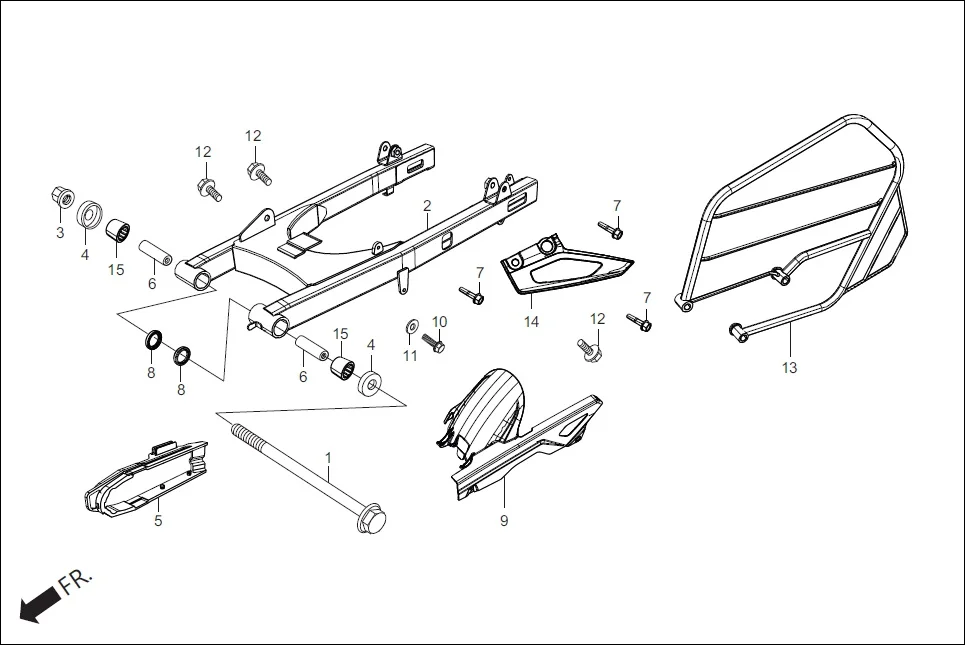

F-18A - SWINGARM /GUARD SAREE CHAIN CASE
Hero Xtreme 200S (May, 2019) · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52101-KTN-700 | BOLT, SWINGARM PIVOT | 1 | |
| 2 | 52110-AAB-A00 | SWINGARM COMP RR | 1 | |
| 4 | 52144-KEJ-900 | DUST SEAL, CAP REAR SWINGARM | 2 | |
| 5 | 52170-AAB-A00 | SLIDER CHAIN | 1 | |
| 6 | 52143-KVE-900 | COLLAR, PIVOT DIST L | 2 | |
| 7 | 95701-08040-07 | BOLT FLANGE,8 X 40 | 3 | |
| 8 | 91254-KS6-003 | DUST SEAL 20 X 26 X 4.5 | 2 | |
| 9 | 40510-AAB-A00 | UPPER CHAIN CASE | 1 | |
| 11 | 90522-AAB-000 | WASHER, CHAIN CASE SETTING | 1 | |
| 13 | 51103-AAB-A00 | GUARD SAREE | 2 | |
| 14 | 40550-AAB-A00 | GUARD LOWER FINAL DRIVE | 1 | |
| 15 | 91071-KVN-900 | BRG, NEEDLE 20X26X20 | 2 | |
