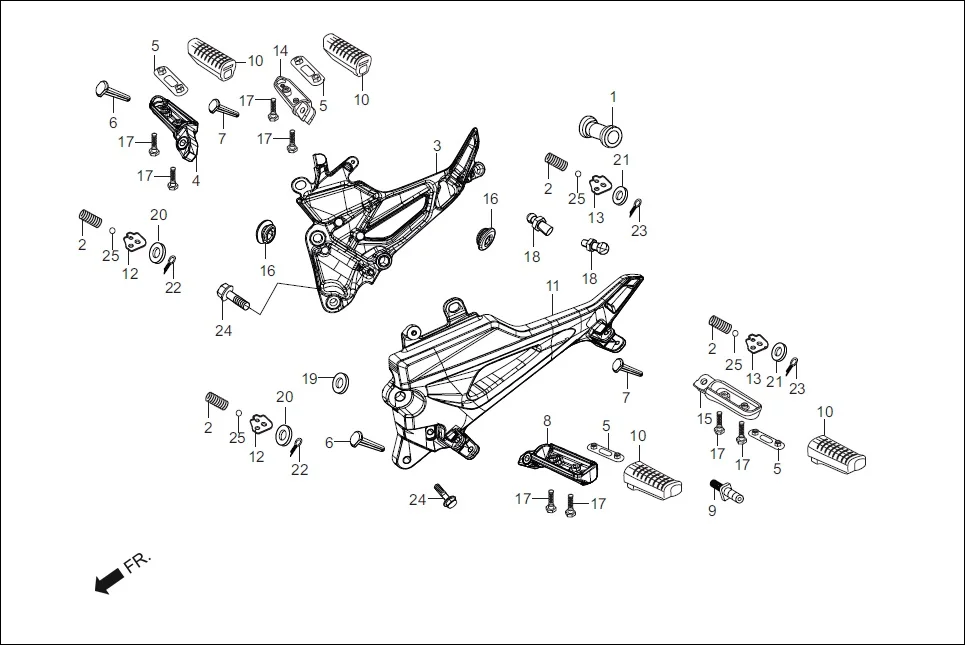

F-15 - STEP PILLION / HOLDER / BRKT.
Hero Xtreme 200S (May, 2019) · 23 parts
Parts in This Assembly (23)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 28333-300-000 | SPRING KICK STARTER STOPPER | 4 | |
| 3 | 50600-AAB-010 | HOLDER R STEP (DISK) | 1 | |
| 4 | 50612-AAB-D00 | ARM R STEP | 1 | |
| 5 | 50619-KRY-970 | PLATE STEP SET | 4 | |
| 6 | 50638-AAB-D00 | PIN, STEP BAR PILLION | 2 | |
| 7 | 50639-AAB-D00 | PIN, STEP BAR | 2 | |
| 8 | 50642-AAB-D00 | ARM L STEP | 1 | |
| 9 | 50643-KCT-690 | PIVOT,CHANGE PEDAL | 1 | |
| 10 | 50661-KVE-860 | RUBBER,STEP | 4 | |
| 11 | 50700-AAB-A00 | HOLDER L STEP | 1 | |
| 12 | 50718-AAB-H70 | PLATE P STEP CLICK | 2 | |
| 13 | 50718-KRY-970 | PLATE, P STEP CLICK | 2 | |
| 14 | 50720-AAB-D00 | ARM, R PILLION STEP | 1 | |
| 15 | 50730-AAB-D00 | ARM, L PILLION STEP | 1 | |
| 16 | 83551-MA6-000 | GROMMET,SIDE COVER | 2 | |
| 17 | 90115-MV9-000 | BOLT, M. STEP RUB.SET | 8 | |
| 18 | 92501-AAB-D00 | BOLT HEX SPL. 8X10 | 2 | |
| 19 | 94101-06000 | WASHER, PLAIN, 6 MM | 1 | |
| 20 | 94102-08700 | WASHER PLAIN 8MM | 2 | |
| 21 | 94101-06700 | WASHER, PLAIN, 6 MM | 2 | |
| 22 | 94201-16120 | PIN, SPLIT, 1.6 X 12 | 2 | |
| 24 | 95701-10025-00 | BOLT, FLANGE, 10 X 25 | 2 | |
| 25 | 96211-08000 | BALL STEEL 8 MM | 4 | |
