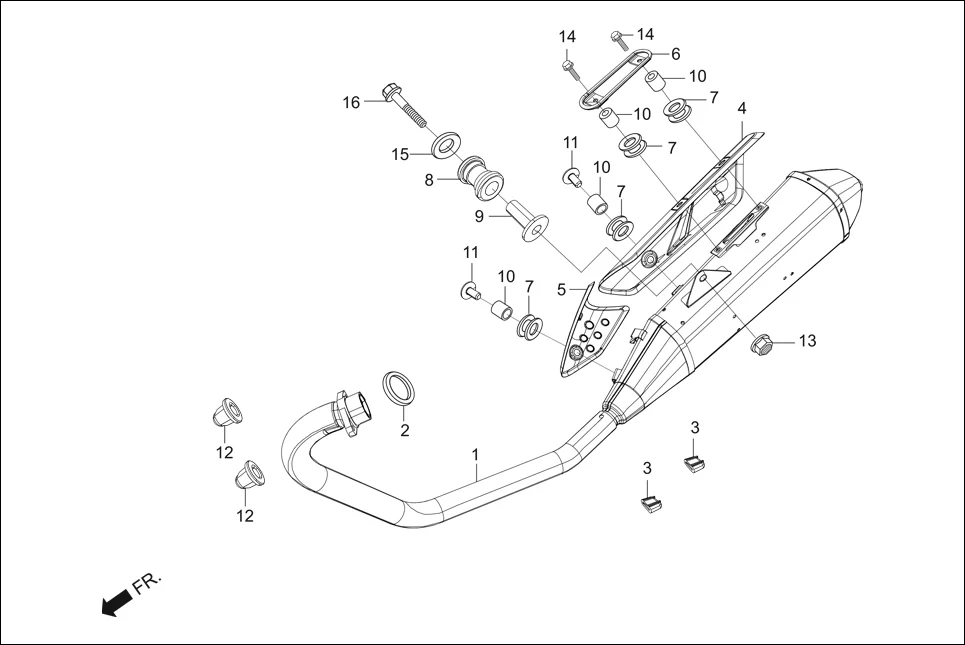

F-14 - MUFFLER
Hero Xtreme 200S (May, 2019) · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18300-AAB-D00 | MUFFLER COMPLETE EXHAUST | 1 | |
| 2 | 18291-KRY-930 | GASKET, EXHAUST PIPE | 1 | |
| 3 | 18293-KPK-900 | RUBBER, PKG. PROTECTOR | 2 | |
| 4 | 18312-ABW-000 | ASSY COVER MUFFLER - 1 | 1 | |
| 5 | 18313-ABW-000 | ASSY COVER MUFFLER - 2 | 1 | |
| 6 | 18317-ABW-000 | PROTECTOR MUFF. | 1 | |
| 7 | 18345-MBT-610 | RUBBER, PROTECTOR, MOUNT | 4 | |
| 8 | 18421-438-670 | RUBBER, MUFFLER MOUNT | 1 | |
| 9 | 18442-KRC-900 | COLLAR, MUFFLER MOUNT | 1 | |
| 10 | 33619-459-840A | COLLAR,WINKER STAY | 4 | |
| 11 | 90107-KST-940 | SCREW MUFF. PROTECTOR MOUNT | 2 | |
| 13 | 94050-10000 | NUT, FLANGE, 10MM | 1 | |
| 14 | 96001-06014-02 | BOLT, FLANGE SH. 6 X 14 | 2 | |
| 15 | 94103-10000 | WASHER, PLAIN, 10MM | 1 | |
| 16 | 95801-10055-00 | BOLT, FLANGE, 10X55 | 1 | |
