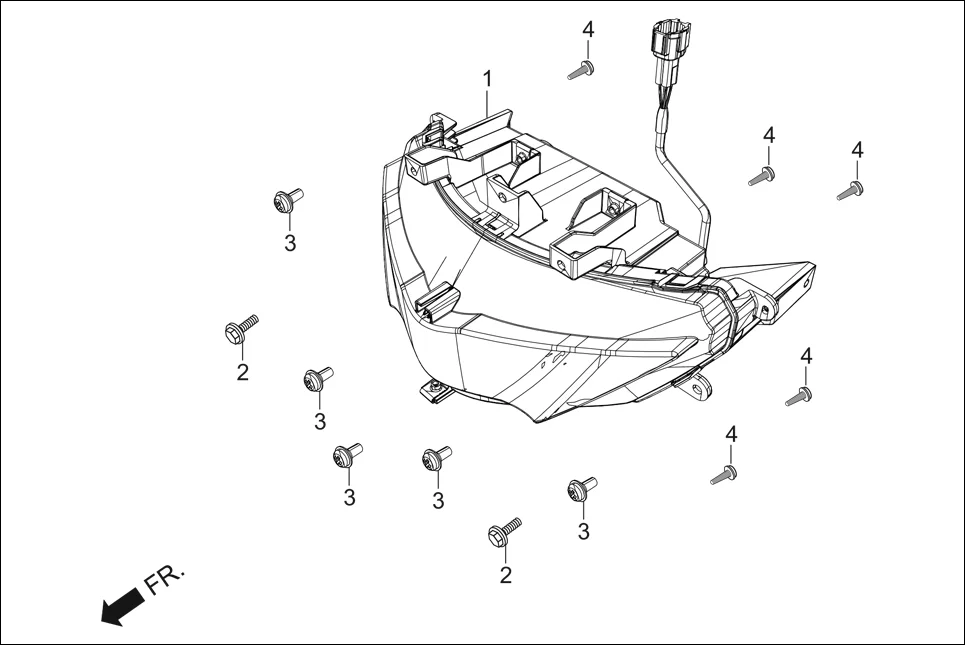

F-1 - HEAD LIGHT
Hero Xtreme 200S (May, 2019) · 3 parts
Parts in This Assembly (3)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33100-AAB-D01 | LIGHT ASSY HEAD | 1 | |
| 3 | 90101-GE0-000 | SCREW, HINGE PATCH | 5 | |
| 4 | 93903-34380 | SCREW, TAPPING, 4X12 | 5 | |
