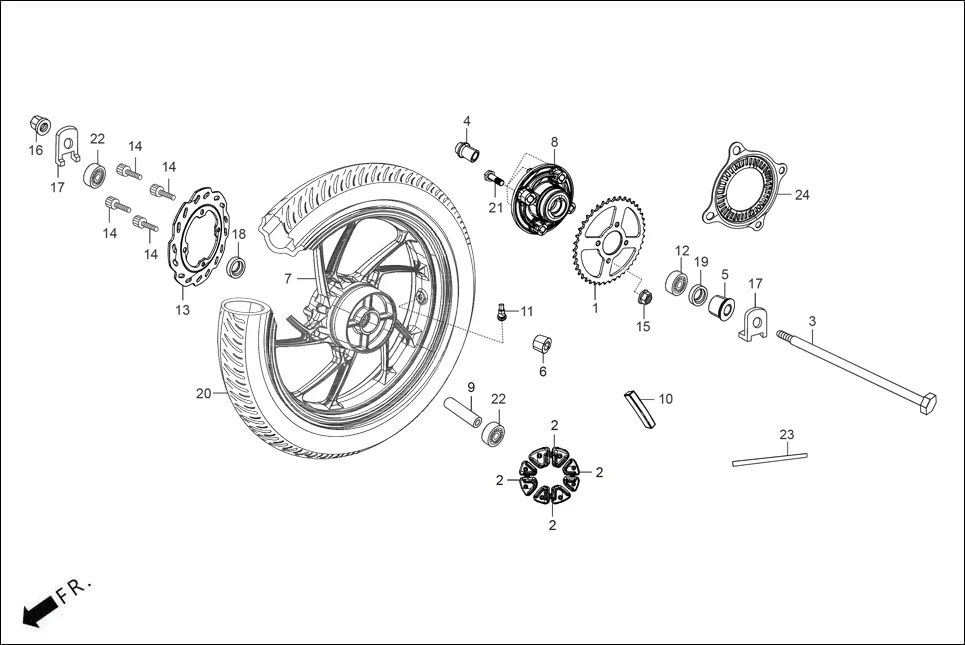

F-9-PREMIUM - RR WHEEL /FLANGE ASSY. DRIVEN(DISC)
Hero XTREME 160R(JUNE,2025) · 27 parts
Parts in This Assembly (27)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 41201-ABW-800 | SPROCKET FINAL DRIVEN 42T | 1 | |
| 2 | 41241-ABZ-000 | DAMPER, RR. WHEEL | 4 | |
| 3 | 42301-AAB-A00 | AXLE RR WHEEL | 1 | |
| 4 | 42303-AAB-A00 | SLEEVE REAR WHEEL | 1 | |
| 5 | 42311-AAB-A00 | COLLAR RR WHEEL SIDE(LH) | 1 | |
| 6 | 42313-KRY-970 | COLLAR RR. BRAKE SIDE | 1 | |
| 7 | 42601-ACR-411 | WHEEL COMP REAR | 1 | |
| 8 | 42615-ABZ-000 | FLANGE SUB ASSY. FINAL DRIVEN | 1 | |
| 9 | 42620-AAR-000 | COLLAR RR AXLE DISTANCE | 1 | |
| 10 | 42703-AAB-A00 | WEIGHT BALANCE 5 | 1 | |
| 10 | 42704-AAB-A00 | WEIGHT BALANCE 10 | 1 | |
| 10 | 42705-AAB-A00 | WEIGHT BALANCE 20 | 1 | |
| 10 | 42707-AAB-A00 | WEIGHT BALANCE 15 | 1 | |
| 11 | 42753-KWF-90099 | RIM VALVE | 1 | |
| 12 | 96150-60050-10 | BEARING, BALL RADIAL, 6005 | 1 | |
| 13 | 43251-ABZ-010 | DISC, RR BRAKE | 1 | |
| 14 | 90105-KL8-741 | BOLT, FR.DISK, 8 X 24 | 4 | |
| 15 | 90304-KCS-920 | NUT`U 10 MM | 4 | |
| 16 | 90305-KVN-900 | NUT, FLG. PT. 14 MM | 1 | |
| 17 | 90560-KVE-900 | WASHER, R RR. AXLE | 2 | |
| 18 | 91253-KSP-901 | DUST SEAL, 30 X 47 X 8 | 1 | |
| 19 | 91257-230-003 | OIL SEAL 28X42X7 | 1 | |
| 20 | 42711-AAB-A01 | TYRE, RR (MRF) | 1 | |
| 21 | 92102-ABZ-000 | BOLT HEX M10X38 | 4 | |
| 22 | 96140-63020-10 | BRG., BALL RADIAL, 6302 (U) | 2 | |
| 23 | ACREC3E0000EEG | RIM TAPE FRONT (MET. AERIS BROWN - MATT) | 1 | |
| 24 | 43252-ACY-100 | SENSOR RING REAR | 1 | |
