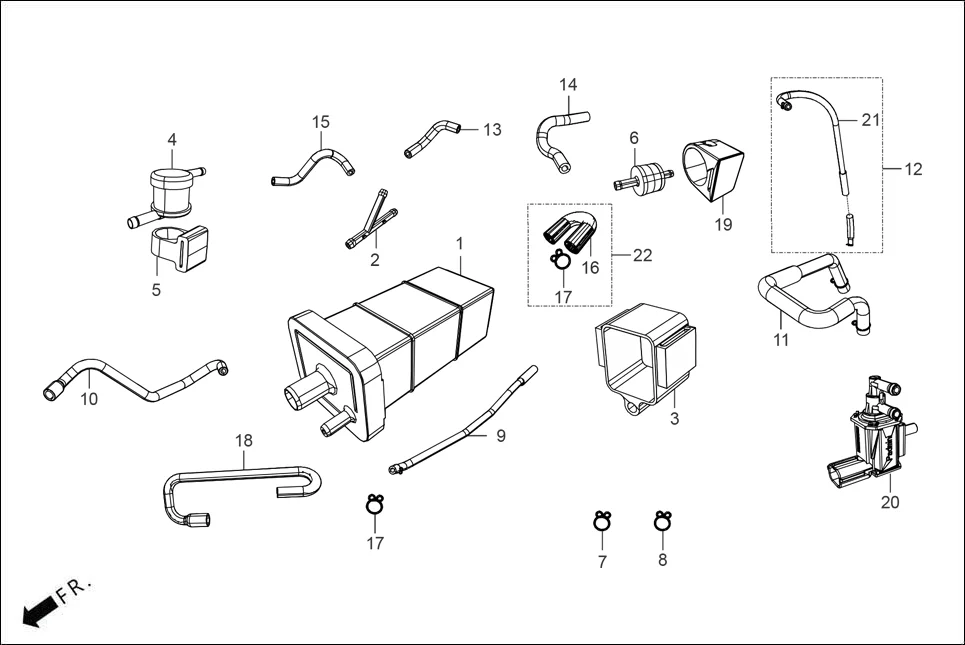

F-11A - (CANISTER ASSY.)
Hero XTREME 160R(JUNE,2025) · 22 parts
Parts in This Assembly (22)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17410-AAH-A0099 | CANISTER COMP | 1 | |
| 2 | 17230-AAH-100 | JOINT 3 WAY | 1 | |
| 3 | 17411-ABZ-000 | SUSP. CANISTER | 1 | |
| 4 | 17420-AAE-100 | ROLL OVER VALVE | 1 | |
| 5 | 17421-AAB-500 | SUSP ROLL OVER VALVE | 1 | |
| 6 | 17430-AAE-100 | ONE WAY VALVE | 1 | |
| 7 | 95002-02130 | CLIP B 12.5 TUBE | 1 | |
| 8 | 95002-70000 | CLIP, C11 TUBE | 2 | |
| 9 | 1769H-ABZ-000 | TUBE DRAIN CANISTER SUB ASSY | 1 | |
| 10 | 1769K-ACR-000 | TUBE PURGE A SUB ASSY | 1 | |
| 11 | 1769M-ACR-000 | TUBE PURGE B SUB ASSY | 1 | |
| 12 | 1769A-ABZ-B00 | TUBE A PIPE BREATHER SUB ASSY | 1 | |
| 13 | 17691-ABZ-B00 | TUBE A CANISTER | 1 | |
| 14 | 17693-ABZ-B00 | TUBE A J3W | 1 | |
| 15 | 17694-ABZ-B00 | TUBE B J3W | 1 | |
| 16 | 17695-AAH-A00 | TUBE BREATHER OWV | 1 | |
| 17 | 95002-02080 | CLIP, TUBE | 13 | |
| 18 | 17696-ABZ-000 | TUBE BREATHER CANISTER | 1 | |
| 19 | 17432-AAE-100 | SUSP. ONE WAY VALVE | 1 | |
| 20 | 17554-AAG-A01 | PURGE SOLENOID VALVE | 1 | |
| 21 | 17690-ABZ-B00 | TUBE A PIPE BREATHER | 1 | |
| 22 | 1769F-AAH-A00 | TUBE BREATHER OWV SUB ASSY. | 1 | |
