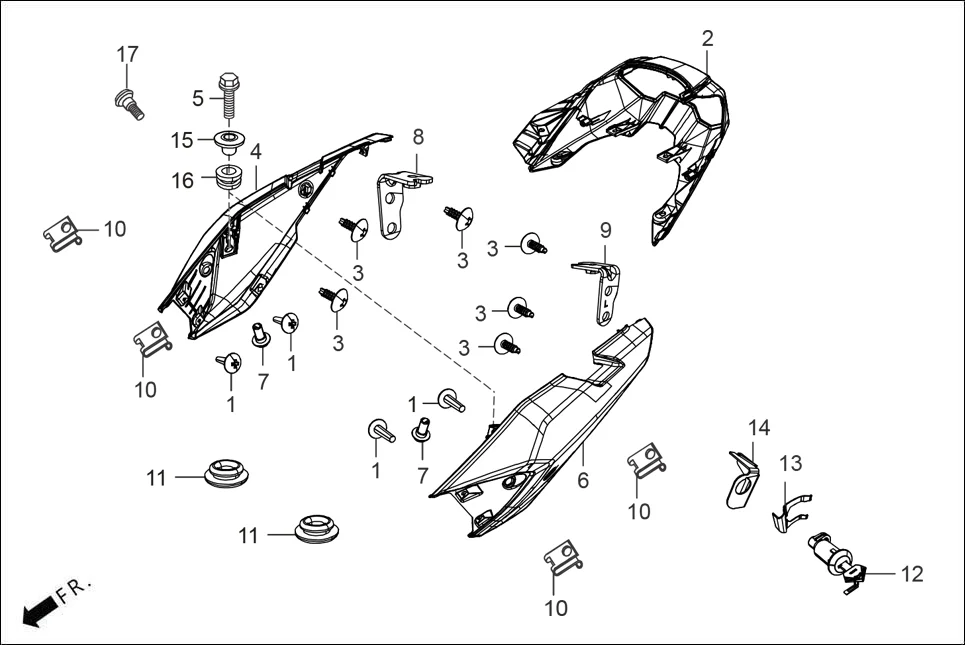

F-10A - BODY COVER(R./L. COWLS)
Hero XTREME 160R(JUNE,2025) · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 93903-25380 | SCREW TAPPING 5X16 | 4 | |
| 2 | 77446-ACR-400 | CENTRE RR COWL UPR (MATT SLATE BLACK) | 1 | |
| 3 | 93903-34380 | SCREW, TAPPING, 4X12 | 4 | |
| 4 | ACRES6A0090BNG | SET COWL REAR RH (SHOOTING NIGHT STAR ME.) | 1 | |
| 4 | ACRES6A0090DRG | SET COWL REAR RH (MATT SLATE BLACK) | 1 | |
| 4 | ACRES6A0090EEG | SET COWL REAR RH (MET. AERIS BROWN - MATT) | 1 | |
| 5 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 2 | |
| 6 | ACRES6A0100BNG | RR COWL L (SHOOTING NIGHT STAR ME.) | 1 | |
| 6 | ACRES6A0100DRG | SET COWL REAR LH (MATT SLATE BLACK) | 1 | |
| 6 | ACRES6A0100EEG | SET COWL REAR LH (MET. AERIS BROWN - MATT) | 1 | |
| 7 | 90001-05012-03 | SOCKET BOLT SPL M5X12 | 4 | |
| 8 | 77447-ACR-400 | STAY RR COWL R | 1 | |
| 9 | 77448-ACR-400 | STAY RR COWL L | 1 | |
| 10 | 90320-GC3-000 | NUT, SPRING, M5 | 4 | |
| 11 | 83163-ABA-000 | GROMMET CIL SIDE COVER | 2 | |
| 12 | 77239-AAL-H00 | KEY SEAT LOCK | 1 | |
| 13 | 75582-KCW-870 | SET SPG, LOCK KEY | 1 | |
| 14 | 77244-ABZ-000 | STAY SEAT LOCK CABLE | 1 | |
| 15 | 80111-KVN-900 | COLLAR, RR. FENDER | 2 | |
| 16 | 80112-KVN-900 | RUBBER, RR FENDER | 2 | |
| 17 | 90101-GE0-000 | SCREW, HINGE PATCH | 2 | |
