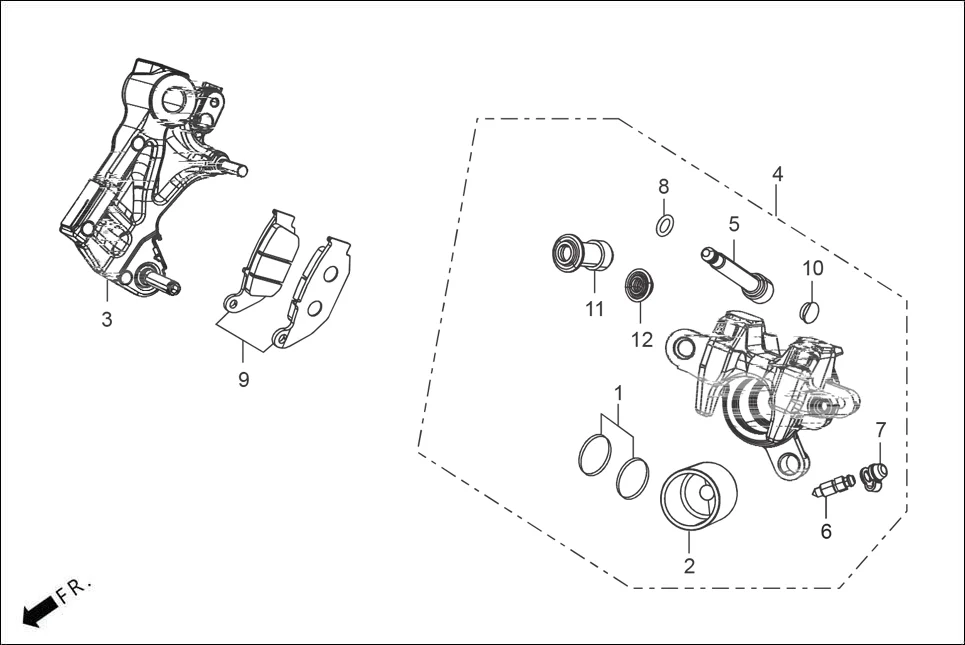

F-8A - REAR BRAKE(CALIPER ASSY. REAR)(DISC)
Hero XTREME 160R(JUNE,2025) · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06451-MA7-405 | SEAL SET, PISTON | 1 | |
| 2 | 43107-MA7-006 | PISTON | 1 | |
| 3 | 43190-ACR-410 | BRKT SUB ASSY RR | 1 | |
| 4 | 43150-ACR-410 | CALIPER SUB ASSY RR | 2 | |
| 5 | 43215-KGH-901 | PIN,HANGER | 1 | |
| 6 | 43352-568-003L | SCREW BLEEDER | 1 | |
| 7 | 43353-461-771L | CAP BLEEDER | 1 | |
| 8 | 45111-MAJ-G41 | STOPPER RING | 1 | |
| 9 | 06435-ACY-110 | PAD SET, RR | 1 | |
| 10 | 45203-MCC-006 | PLUG,PIN | 1 | |
| 11 | 45132-166-016L | BUSH BOOT PIN | 1 | |
| 12 | 45133-MA3-006L | BOOT B | 1 | |
