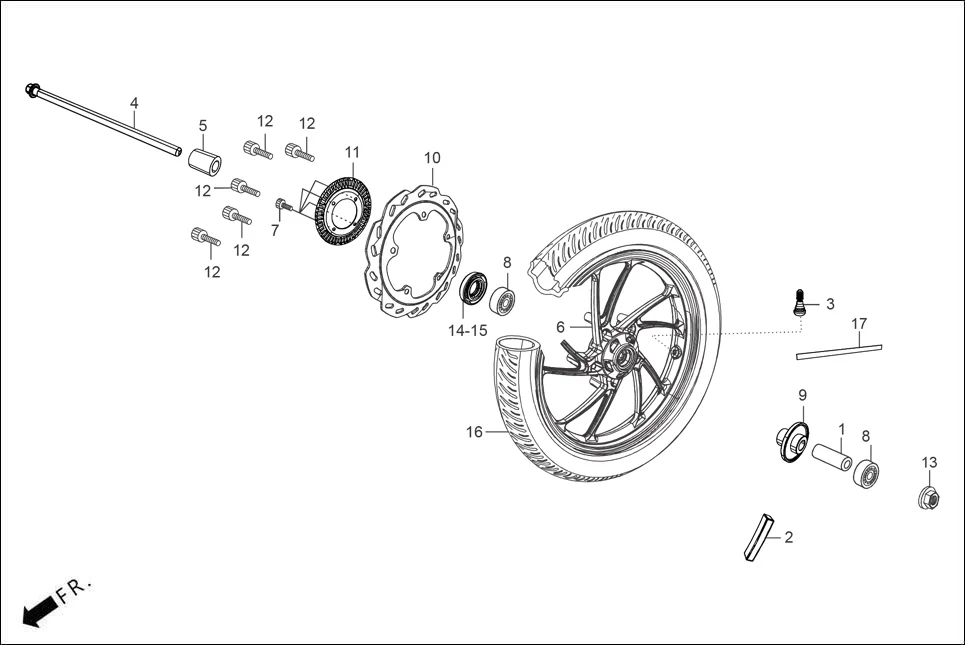

F-7-PREMIUM - FRONT WHEEL
Hero XTREME 160R(JUNE,2025) · 24 parts
Parts in This Assembly (24)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 42620-KTR-700 | COLLAR, REAR AXLE DISTANCE | 1 | |
| 2 | 42703-AAB-A00 | WEIGHT BALANCE 5 | 1 | |
| 2 | 42704-AAB-A00 | WEIGHT BALANCE 10 | 1 | |
| 2 | 42705-AAB-A00 | WEIGHT BALANCE 20 | 1 | |
| 2 | 42707-AAB-A00 | WEIGHT BALANCE 15 | 1 | |
| 3 | 42753-KWF-90099 | RIM VALVE | 1 | |
| 4 | 44301-ABR-000 | AXLE, FR. WHEEL | 1 | |
| 5 | 44311-KPL-900 | COLLAR, FR. WHEEL SIDE | 1 | |
| 6 | 44601-ABZ-010 | WHEEL COMP FRONT | 1 | |
| 6 | 44601-ABZ-011 | WHEEL COMP FRONT | 1 | |
| 6 | 44601-ABZ-012 | WHEEL COMP. FRONT | 1 | |
| 6 | 44601-ABZ-013 | WHEEL COMP FRONT | 1 | |
| 7 | 96600-05012-10 | BOLT SOCKET 5X12 | 4 | |
| 8 | 96140-63010-10 | BEARING, RADIAL BALL, 6301U | 2 | |
| 9 | 44802-AAB-A00 | SLEEVE FR WHEEL (LH) | 1 | |
| 10 | 45251-ABZ-010 | DISK, FR BRAKE | 1 | |
| 11 | 45252-AAB-A00 | SENSOR RING FR DISC | 1 | |
| 12 | 90105-KL8-741 | BOLT, FR.DISK, 8 X 24 | 5 | |
| 13 | 90306-KST-942 | NUT, CASTLE, 12 MM | 1 | |
| 13 | 90306-KTE-911 | NUT, CASTLE, 12 MM | 1 | |
| 14 | 90755-229-000 | OIL SEAL, 21 X 37 X 7 | 1 | |
| 15 | 91251-KPH-901 | DUST SEAL, 21 X 37 X 7 | 1 | |
| 16 | 44711-AAB-A01 | TYRE, FR. | 1 | |
| 17 | 42622-ACR-300R | RIM TAPE REAR | 1 | |
