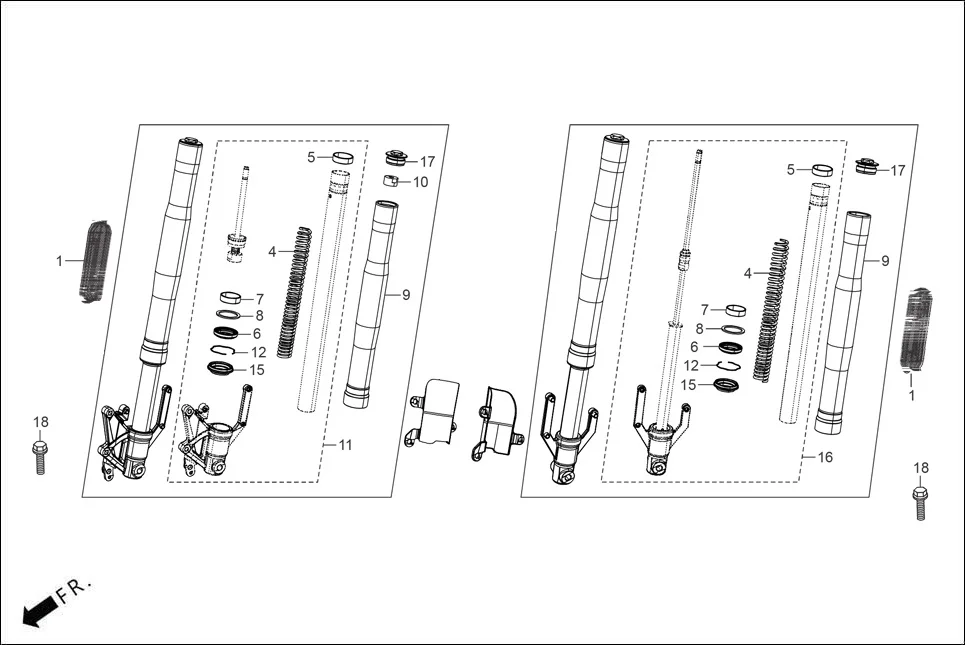

F-6B-MID-BASE - FRONT CUSHION
Hero XTREME 160R(JUNE,2025) · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33760-RAA-001 | REFLEX REFLECTOR FRONT | 2 | |
| 4 | 51401-ACR-300 | SPRING FR. FORK | 1 | |
| 5 | 51424-ACR-300 | PISTON | 2 | |
| 6 | 91255-ACR-300 | SEAL OIL | 2 | |
| 7 | 51414-ACR-300 | GUIDE BUSH | 2 | |
| 8 | 51419-ACR-300 | WASHER | 2 | |
| 9 | 51420-ACR-300 | CASE COMP R FRONT BOTTOM | 2 | |
| 10 | 51429-ACR-300 | GUIDE NUT | 2 | |
| 11 | 51470-ACR-300 | R SLIDE PIPE COMP | 1 | |
| 12 | 51477-ACR-300 | RING, OIL SEAL STOP | 2 | |
| 15 | 91254-ACR-300 | SEAL, DUST | 2 | |
| 16 | 51570-ACR-300 | L SLIDE PIPE COMP | 2 | |
| 17 | 90123-ACR-300 | BOLT FRONT FORK | 2 | |
| 18 | 95701-08035-00 | BOLT, FLANGE, 8 X 35 | 2 | |
