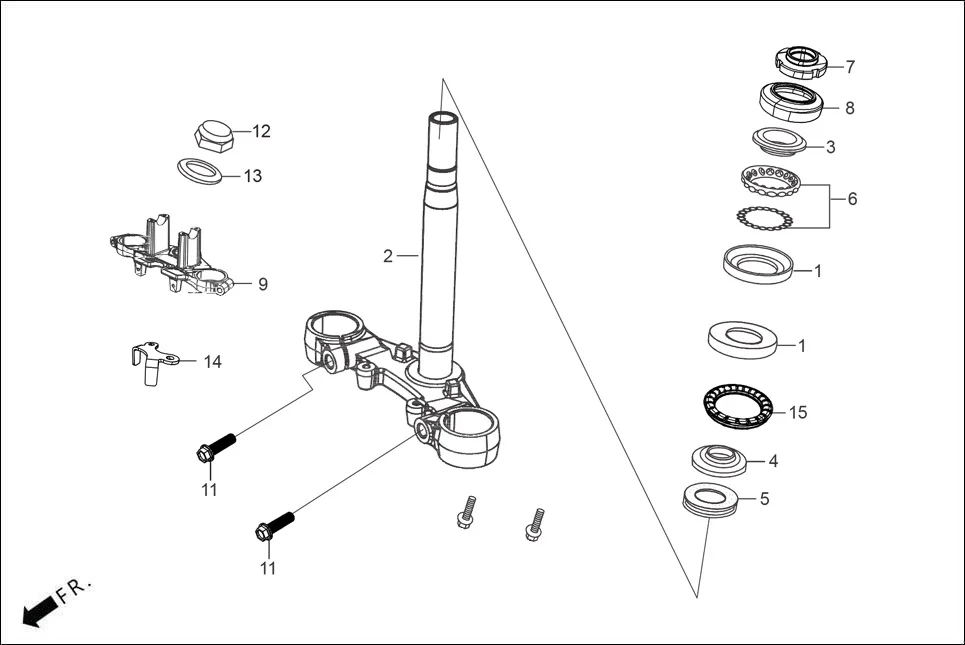

F-6-PREMIUM - FRONT CUSHION (STEERING STEM)
Hero XTREME 160R(JUNE,2025) · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50301-KTR-900 | RACE, STEERING BALL | 2 | |
| 1 | 50301-041-010 | RACE, STEERING BALL | 2 | |
| 2 | 53200-ACR-300 | STEM COMP. STEERING | 1 | |
| 3 | 53211-028-010 | RACE, STEERING TOP CONE | 1 | |
| 4 | 53212-200-000 | RACE, STEERING BOTTOM CONE | 1 | |
| 5 | 53214-200-000 | DUST SEAL, STEERING HEAD | 1 | |
| 6 | 53215-KTR-900 | BALL, ASSY. STEERING | 1 | |
| 7 | 53220-ABZ-000 | THREAD COMP STRG TOP | 1 | |
| 8 | 53222-ABZ-000 | MUD GUARD, STRG. (HEAD TOP) | 1 | |
| 9 | 53230-ACR-300 | BRIDGE FORK TOP | 1 | |
| 11 | 90002-AAB-A00 | BOLT FLANGE 10X40 | 2 | |
| 12 | 90304-159-000 | NUT, STEERING STEM | 1 | |
| 13 | 90503-051-870 | WASHER, STEERING STEM | 1 | |
| 14 | 35106-KTC-900 | COVER, COMB. SWITCH | 1 | |
| 15 | 53210-ABZ-001 | BALL ASSY. STEERING STEEL | 1 | |
