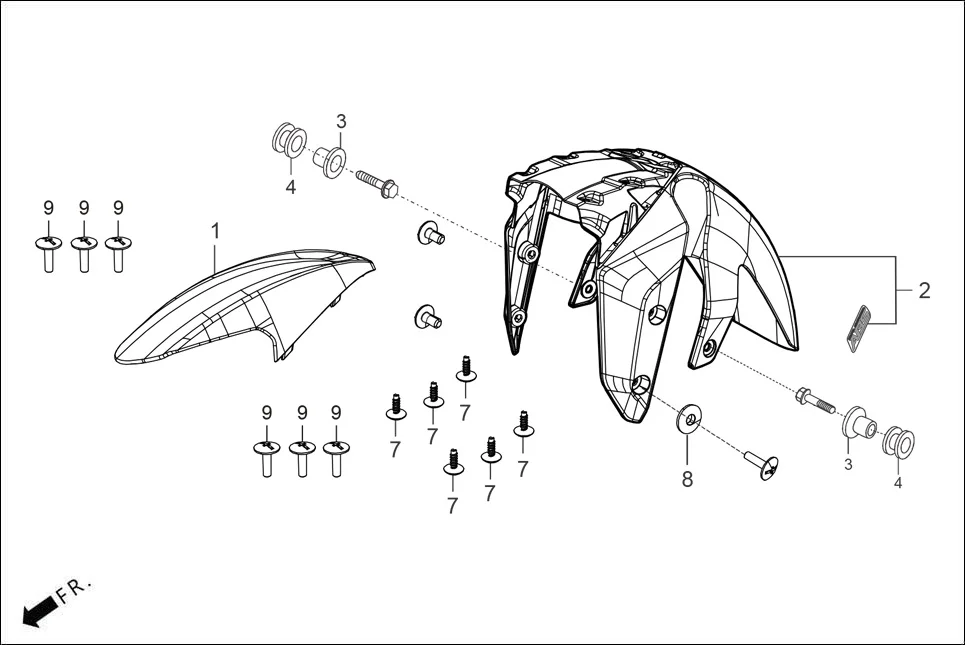

F-5-PREMIUM - FRONT FENDER
Hero XTREME 160R(JUNE,2025) · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61101-ACR-000C | FRONT FENDER A (SHOOTING NIGHT STAR ME.) | 1 | |
| 1 | 61101-ACR-000G | FRONT FENDER A (PEARL BLACK) | 1 | |
| 1 | 61101-ACR-0002 | FRONT FENDER A | 1 | |
| 2 | ACRES6A0050EEG | FRONT FENDER B BASIC (MET. AERIS BROWN - MATT) | 1 | |
| 3 | 84706-ABZ-600 | COLLAR TAIL LIGHT MTG | 2 | |
| 4 | 61105-KTC-900 | RUBBER, FRONT FENDER MOUNTING | 2 | |
| 7 | 93903-34210 | SCREW TAPPING 4X10 | 6 | |
| 8 | 90501-ACR-300 | COLLAR FENDER GROMMET | 1 | |
| 9 | 90105-KVE-860 | BOLT,SPECIAL 6X22 | 6 | |
