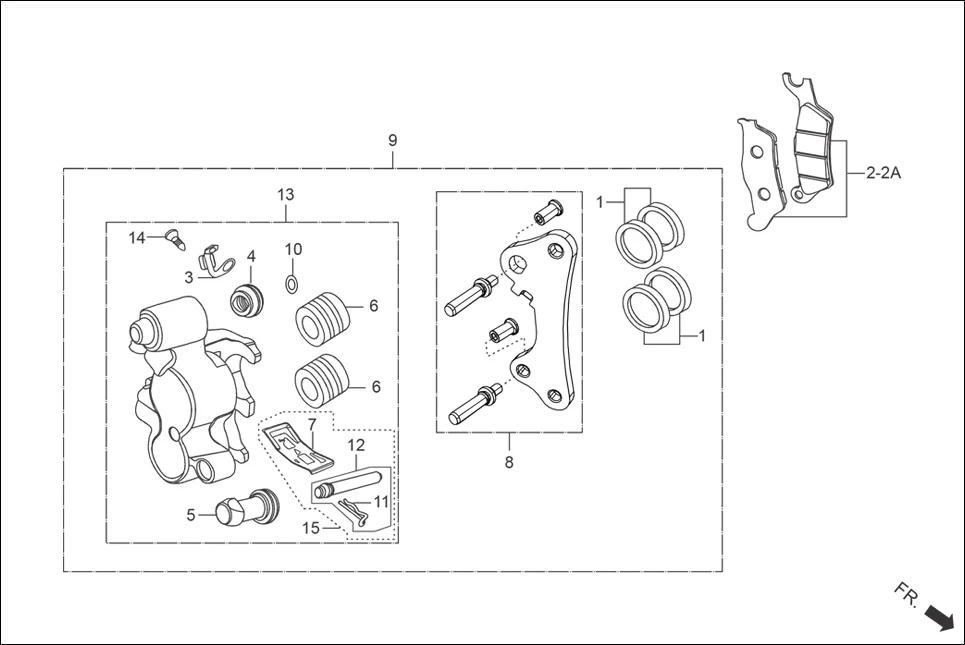

F-4B-PREMIUM - FRONT BRAKE(CALIPER ASSY ‘R’ FR.)
Hero XTREME 160R(JUNE,2025) · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06451-KCC-841 | SEAL SET, PISTON | 2 | |
| 2 | 06455-KVE-861 | PAD SET FR | 1 | |
| 2 | 06455-AAN-211 | PAD SET FR | 1 | |
| 3 | 45353-KCC-841 | CAP, BLEEDER | 1 | |
| 4 | 45133-KCC-841 | BOOT,B | 1 | |
| 5 | 45132-KCC-841 | BUSH, BOOT PIN | 1 | |
| 6 | 45107-KCC-841 | PISTON, 26 | 2 | |
| 7 | 45108-KCC-841 | PAD, SPRING | 1 | |
| 8 | 45290-KCC-841 | BRKT. SUB ASSY., R FR | 1 | |
| 9 | 45250-ACR-300 | CALIPER SUB ASSEMBLY | 1 | |
| 10 | 94102-10000 | WASHER, PLAIN, 10MM | 1 | |
| 11 | 43216-MAK-003 | CLIP | 1 | |
| 12 | 45220-KCC-841 | PIN COMP., HANGER | 1 | |
| 13 | 45250-KCC-841 | CALIPER SUB ASSY., R FR | 1 | |
| 14 | 45352-KCC-841 | SCREW, BLEEDER | 1 | |
| 15 | 45219-ACR-300 | PAD PIN SET | 1 | |
