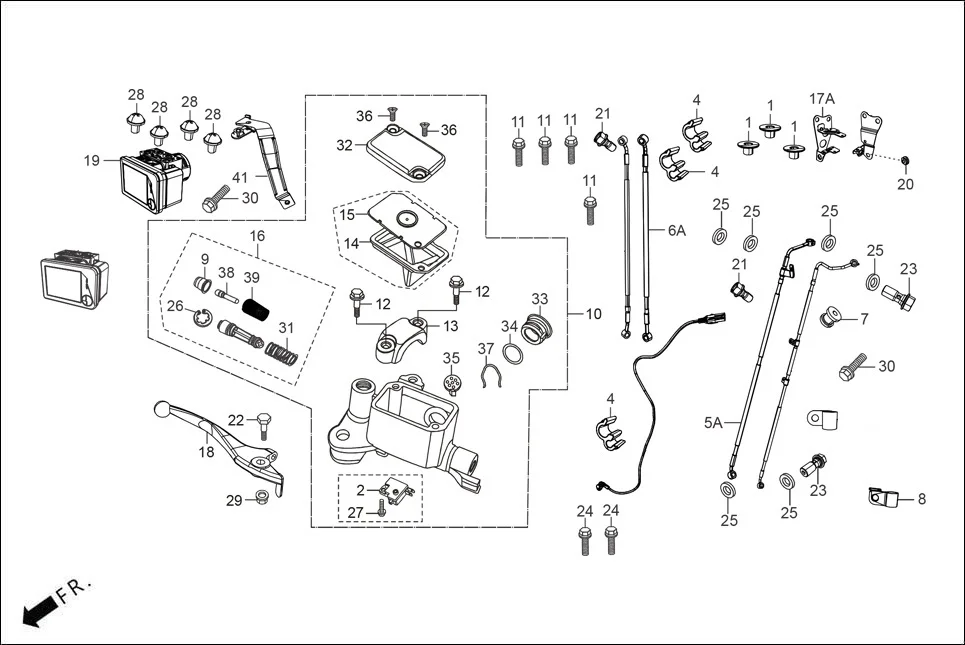

F-4A-MID-BASE - FRONT BRAKE(MASTER CYLINDER)
Hero XTREME 160R(JUNE,2025) · 36 parts
Parts in This Assembly (36)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 94103-06700 | WASHER, PLAIN, 6 MM | 3 | |
| 2 | 35340-KCC-841 | SW. ASSY. FR. STOP. | 1 | |
| 4 | 43301-AAB-A00 | CLIP BRAKE LINE | 3 | |
| 7 | 46427-AAB-A00 | RUBBER HOSE CLAMP | 1 | |
| 8 | 45154-ACW-000 | CLAMPER A FR BRAKE | 1 | |
| 9 | 45504-KCC-841 | BOOT COMP. | 1 | |
| 10 | 45510-KVN-901 | M/C SUB ASSY, FR. BRK | 1 | |
| 11 | 95701-06018-00 | BOLT FLANGE 6X18 | 4 | |
| 12 | 90111-KCC-841 | BOLT,FLANGE 6 X 25 | 2 | |
| 13 | 45517-KCC-841 | HOLDER MASTER CYLINDER | 1 | |
| 14 | 45520-KCC-841 | DIAPHRAGM | 1 | |
| 15 | 45521-KCC-841 | PLATE, DIAPHRAGM | 1 | |
| 16 | 45530-KCC-841 | CYLINDER SET MASTER | 1 | |
| 18 | 53175-KSP-900 | LEVER, R STRG. HANDLE | 1 | |
| 19 | 57110-ACR-000 | HECU MINI MAB | 1 | |
| 20 | 83545-AAB-A00 | RUBBER ABS UNIT MOUNTING | 3 | |
| 21 | 90042-AAB-A00 | BANJO BOLT M10X1 | 2 | |
| 22 | 90114-KCC-841 | BOLT, HANDLE LEVER | 1 | |
| 23 | 90145-RAA-000 | OIL BOLT 10X22 | 2 | |
| 24 | 90155-KY4-900 | BOLT, FLANGE, 8 X 25 | 2 | |
| 25 | 90545-ABZ-000 | WASHER OIL BOLT | 8 | |
| 26 | 90651-KCC-841 | CIRCLIP | 1 | |
| 27 | 90112-KCC-841 | SCREW,PAN,4X8 | 1 | |
| 28 | 93891-05008-00 | SCREW WASH 5X8 | 4 | |
| 29 | 90303-KCC-841 | NUT | 1 | |
| 30 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 5 | |
| 31 | 45506-KCC-841 | SPRING | 1 | |
| 32 | 45513-KCC-841 | CAP, MASTER CYLINDER | 1 | |
| 33 | 45515-KVN-901 | GAUGE COMP., LEVEL | 1 | |
| 34 | 45516-KCC-841 | O RING | 1 | |
| 35 | 45518-KCC-841 | SEPARETOR COMP. | 1 | |
| 36 | 45519-KCC-841 | SCREW FLAT | 2 | |
| 37 | 45522-KCC-841 | CLIP, GAUGE | 1 | |
| 38 | 45525-KCC-841 | PUSH ROD | 1 | |
| 39 | 45526-KCC-841 | SPRING , PUSH ROD | 1 | |
| 42 | 43310-ACJ-0000-23 | CLAMPER A RR BRAKE | 1 | |
