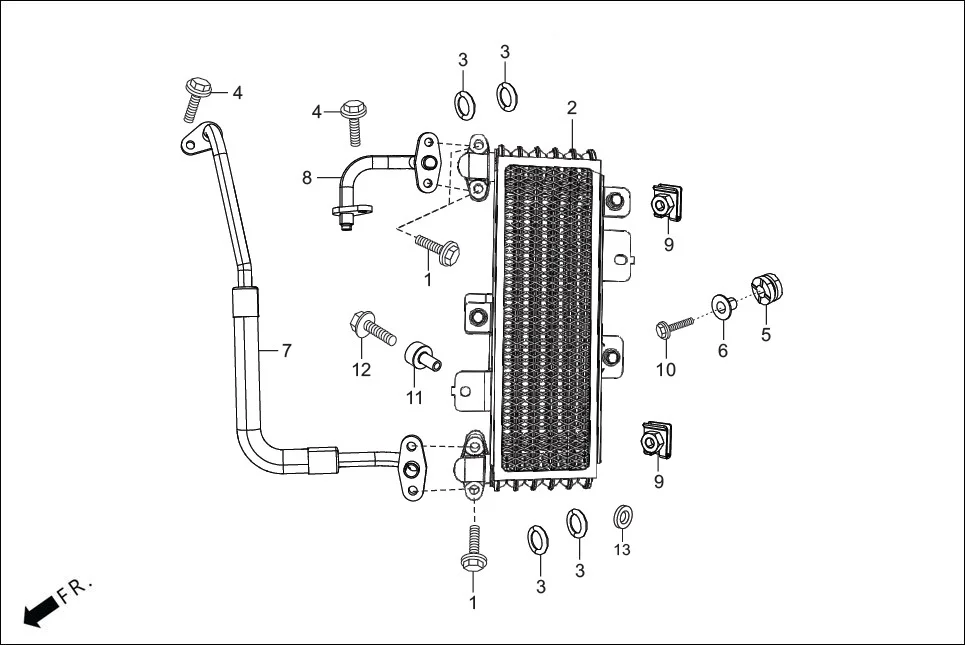

F-1B - OIL COOLER ASSY.
Hero XTREME 160R(JUNE,2025) · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 96001-06020-00 | BOLT, FLANGE, SH. 6 X 20 | 4 | |
| 2 | 15600-ACR-000 | OIL COOLER ASSEMBLY | 1 | |
| 3 | 91314-ME5-003 | O-RING, 10 X 2.6 | 4 | |
| 4 | 95701-06016-07 | BOLT, FLANGE, 6 X 16 | 2 | |
| 5 | 19051-KA3-830 | RUBBER, RAD MT | 2 | |
| 6 | 19052-MN8-000 | COLLAR, RAD MT | 1 | |
| 7 | 15510-ACR-000 | OIL HOSE A | 1 | |
| 8 | 1552A-ACR-000 | OIL HOSE B COMP | 1 | |
| 9 | 19014-ACN-000 | SET NUT | 2 | |
| 10 | 95701-06025-00 | BOLT, FLANGE, 6X 25 | 1 | |
| 11 | 19052-ACR-000 | COLLAR OIL COOLER MT | 1 | |
| 12 | 95701-06040-00 | BOLT FLANGE 6X40 | 1 | |
| 13 | 94103-06700 | WASHER, PLAIN, 6 MM | 1 | |
