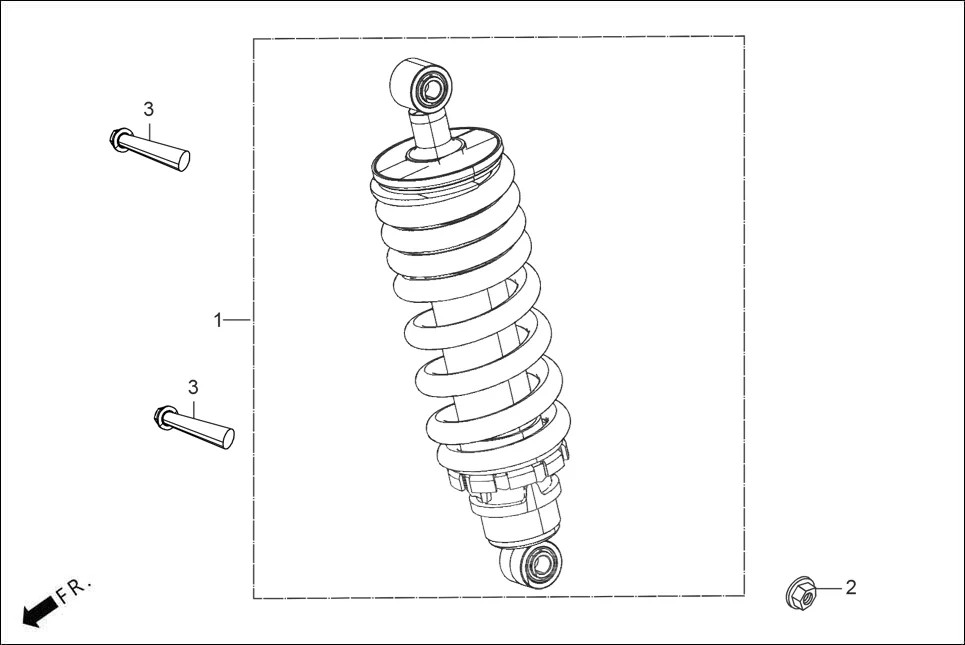

F-19-PREMIUM - CUSHION REAR
Hero XTREME 160R(JUNE,2025) · 3 parts
Parts in This Assembly (3)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52400-ACR-300 | CUSHION ASSY. REAR | 1 | |
| 2 | 90304-KST-942 | NUT FLG.PT 10MM | 1 | |
| 3 | 90159-AAB-A00 | BOLT FLANGE 10X50 | 2 | |
