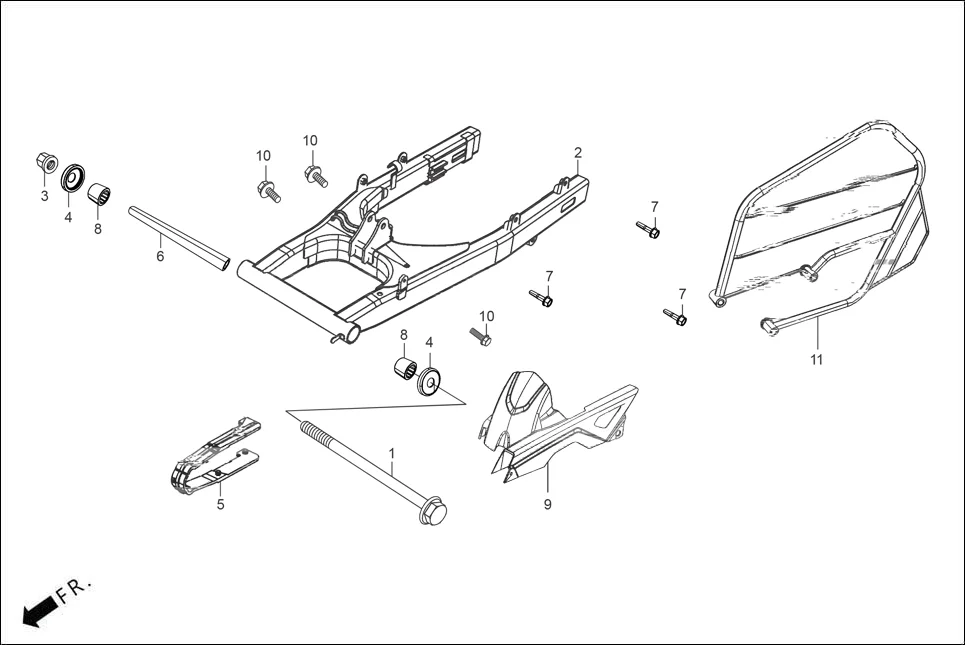

F-18A-MID-BASE - SWINGARM / GUARD SAREE / CHAIN CASE
Hero XTREME 160R(JUNE,2025) · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52101-ABZ-000 | BOLT,SWINGARM PIVOT | 1 | |
| 2 | 52110-ACR-400 | SWINGARM COMP RR | 1 | |
| 3 | 90305-KVN-900 | NUT, FLG. PT. 14 MM | 1 | |
| 4 | 52144-ABZ-601 | DUST SEAL CAP RR SWINGARM | 2 | |
| 5 | 52170-ABZ-000 | SLIDER CHAIN | 1 | |
| 6 | 52141-ABZ-600 | COLLAR SWING ARM PIVOT | 1 | |
| 7 | 95701-08040-07 | BOLT FLANGE,8 X 40 | 3 | |
| 8 | 91071-KVN-900 | BRG, NEEDLE 20X26X20 | 2 | |
| 9 | 40510-ABZ-000 | UPPER CHAIN CASE | 1 | |
| 10 | 90111-187-000 | BOLT, FLANGE. 6 MM | 3 | |
| 11 | 51103-AAB-A00 | GUARD SAREE | 2 | |
