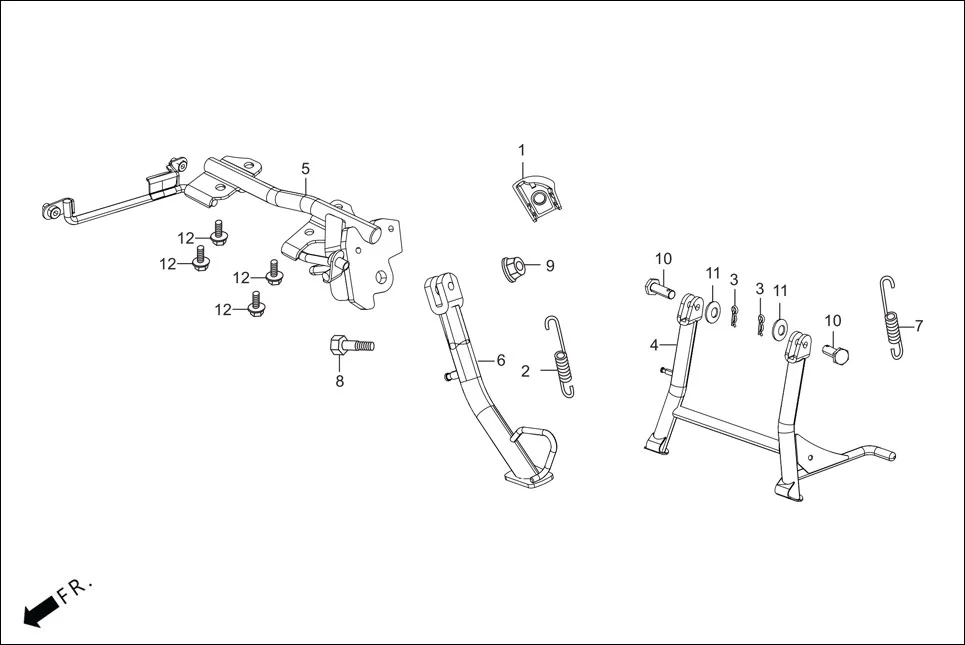

F-18 - CHAIN CASE & STAND
Hero XTREME 160R(JUNE,2025) · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35130-AAB-000 | MAGNET HOLDER ASSY. | 1 | |
| 2 | 95014-72102 | SPRING, SIDE STAND | 1 | |
| 3 | 94252-ABZ-000 | PIN LOCK 10 MM | 2 | |
| 4 | 50500-ABZ-000 | STAND COMP. MAIN | 1 | |
| 5 | 50610-ACR-000 | BRCKT SIDE STAND ASSY | 1 | |
| 6 | 50530-ABZ-000 | BAR COMP. SIDE STAND | 1 | |
| 7 | 95014-71702 | SPRING G MAIN STAND | 1 | |
| 8 | 90107-AAB-000 | SCREW SIDE STAND PIVOT | 1 | |
| 9 | 90304-KFN-850 | NUT U 10 MM | 1 | |
| 10 | 90108-ABZ-000 | SCREW MAIN STAND PIVOT | 2 | |
| 11 | 94101-10000 | WASHER, PLAIN, 10 MM | 2 | |
| 12 | 95701-08020-00 | BOLT, FLANGE, 8X20 | 4 | |
