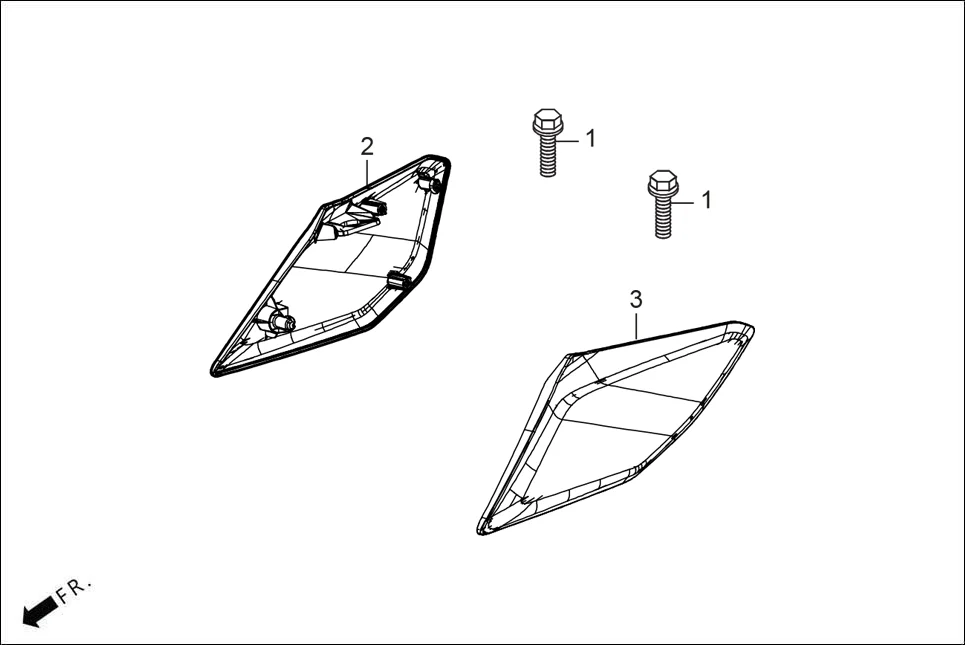

F-12 - SIDE COVER
Hero XTREME 160R(JUNE,2025) · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 2 | |
| 2 | 77246-ACR-400G | SET COVER R SIDE (PEARL RED) | 1 | |
| 2 | 77246-ACR-400F | SET COVER R SIDE (MATT SLATE BLACK) | 1 | |
| 2 | 77246-ACR-400N | SET COVER R SIDE (BD CARBON FIBER) | 1 | |
| 3 | 77256-ACR-400G | SET COVER L SIDE (PEARL RED) | 1 | |
| 3 | 77256-ACR-400F | SET COVER L SIDE (MATT SLATE BLACK) | 1 | |
| 3 | 77256-ACR-400N | SET COVER L SIDE (BD CARBON FIBER) | 1 | |
