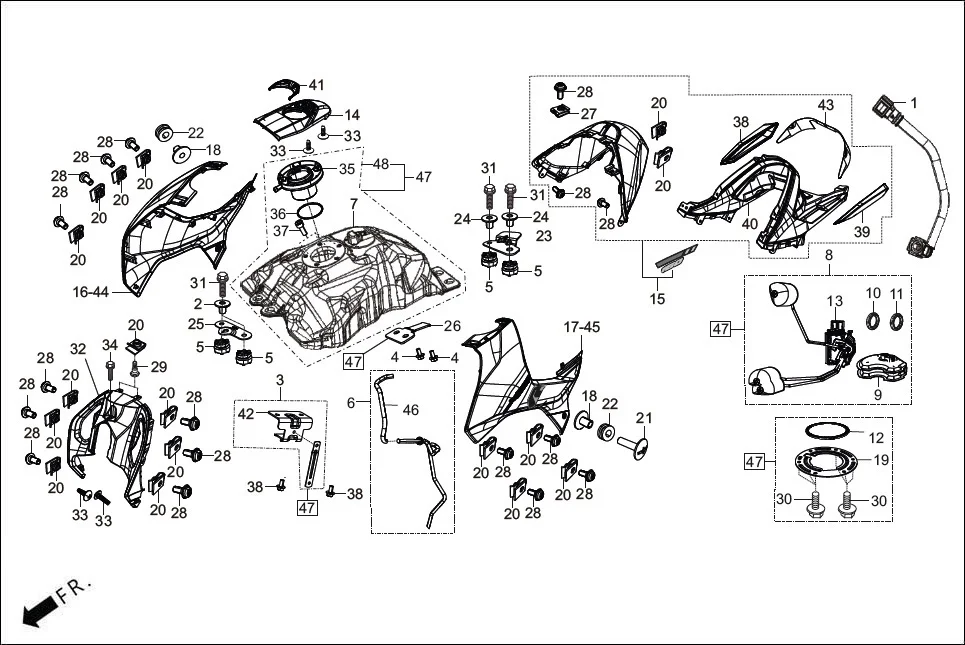

F-11-BASE - FUEL TANK
Hero XTREME 160R(JUNE,2025) · 58 parts
Parts in This Assembly (58)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17570-ACR-002 | HOSE FUEL FEED | 1 | |
| 2 | 17312-ABZ-000 | COLLAR FRONT FUEL TANK | 2 | |
| 3 | 1752A-ABZ-B00 | STAY USB CONTROLLER ASSY | 1 | |
| 4 | 95701-05010-00 | BOLT FLANGE 5X10 | 4 | |
| 5 | 17622-ABZ-B00 | GROMMET FUEL TANK | 4 | |
| 6 | 1719A-ABZ-B00 | TUBE DRAIN SUB ASSY | 1 | |
| 7 | 17510-ABZ-B00 | TANK COMP FUEL | 1 | |
| 8 | 16700-ABZ-B01 | UNIT ASSY FUEL PUMP | 1 | |
| 9 | 16701-ABZ-002 | FUEL PUMP FILTER | 1 | |
| 10 | 16702-ABZ-002 | FUEL PUMP O RING | 1 | |
| 11 | 16702-ABZ-003 | FUEL PUMP O RING | 1 | |
| 12 | 17572-AAC-G70 | GASKET FUEL PUMP | 1 | |
| 13 | 37800-ABZ-B01 | UNIT ASSY FUEL | 1 | |
| 14 | 17530-ACR-000C | TANK COVER FR. (SHOOTING NIGHT STAR ME.) | 1 | |
| 14 | 17530-ACR-000F | TANK COVER FR. (MATT SLATE BLACK) | 1 | |
| 14 | 17530-ACR-0002 | TANK COVER FR. (MET. AERIS BROWN - MATT) | 1 | |
| 15 | ACRES6A0020BNG | SET TANK COVER REAR (SHOOTING NIGHT STAR ME.) | 1 | |
| 15 | 17580-ACR-300F | SET TANK COVER RR. (MATT SLATE BLACK) | 1 | |
| 15 | ACRES6A0020EEG | SET TANK COVER REAR (MET. AERIS BROWN - MATT) | 1 | |
| 16 | 17555-ACR-300F | SET TANK COVER R SIDE (MATT SLATE BLACK) | 1 | |
| 16 | 17555-ACR-300C | SET TANK COVER R SIDE (SHOOTING NIGHT STAR ME.) | 1 | |
| 17 | 17565-ACR-300F | SET TANK COVER L SIDE (MATT SLATE BLACK) | 1 | |
| 17 | 17565-ACR-300C | SET TANK COVER L SIDE (SHOOTING NIGHT STAR ME.) | 1 | |
| 18 | 61104-428-000 | COLLAR, FR, FENDER | 2 | |
| 19 | 17507-ABZ-B00 | PLATE SETTING | 1 | |
| 20 | 90677-KAN-961 | NUT CLIP 5MM | 2 | |
| 22 | 77202-KCC-900 | RUBBER, SEAT MOUNTING | 2 | |
| 23 | 17525-ABZ-000 | STAY SEAT GUIDE | 1 | |
| 24 | 17313-ABZ-000 | COLLAR REAR FUEL TANK | 2 | |
| 25 | 17523-ABZ-000 | STAY TANK COVER FR | 1 | |
| 26 | 17519-ABZ-B00 | STAY OWV | 1 | |
| 27 | 90320-GC3-000 | NUT, SPRING, M5 | 16 | |
| 28 | 90101-087-720 | SCREW, HEAD LIGHT SET | 16 | |
| 29 | 90102-GB2-720 | SCREW, PAN, 5X16 | 2 | |
| 30 | 95701-06010-07 | BOLT, FLANGE, 6 X 10 | 6 | |
| 31 | 95701-08035-00 | BOLT, FLANGE, 8 X 35 | 4 | |
| 32 | 64120-ACR-000 | TANK COVER INNER | 1 | |
| 33 | 93903-34210 | SCREW TAPPING 4X10 | 4 | |
| 34 | 95701-06016-07 | BOLT, FLANGE, 6 X 16 | 1 | |
| 35 | 17504-ABZ-B00 | FUEL FILLER COMP | 1 | |
| 36 | 91305-ABZ-B00 | O RING | 1 | |
| 37 | 96600-05014-07 | BOLT SOCKET 5X14 | 5 | |
| 38 | 83550-ACR-000F | COVER B R SIDE (MATTE SLATE BLACK) | 1 | |
| 38 | 83550-ACR-000G | COVER B R SIDE (PEARL BLACK) | 1 | |
| 39 | 83650-ACR-000F | COVER B L SIDE (MATTE SLATE BLACK) | 1 | |
| 39 | 83650-ACR-000G | COVER B L SIDE (PEARL BLACK) | 1 | |
| 40 | 17550-ACR-000G | TANK COVER RR B (PEARL BLACK) | 1 | |
| 40 | 17550-ACR-000L | TANK COVER RR B (MATT GUN METAL S(D)-015M(F)) | 1 | |
| 40 | 17550-ACR-000D | TANK COVER RR B (MAT RAY SILVER) | 1 | |
| 41 | 17561-ACR-000F | TANK COVER FR TOP (MATTE SLATE BLACK) | 1 | |
| 41 | 17561-ACR-000G | TANK COVER FR TOP (PEARL BLACK) | 1 | |
| 41 | 17561-ACR-000N | TANK COVER FR TOP (BD CARBON FIBER) | 1 | |
| 42 | 17527-ABZ-B00 | STAY USB CONTROLLER | 1 | |
| 44 | ACRES6A0000EEG | SET TANK COVER SIDE RH (MET. AERIS BROWN - MATT) | 1 | |
| 45 | ACRES6A0010EEG | SET TANK COVER SIDE LH (MET. AERIS BROWN - MATT) | 1 | |
| 46 | 17699-ABZ-000 | TUBE DRAIN CANISTER | 1 | |
| 47 | 17500-ACR-000 | TANK ASSY FUEL | 1 | |
| 48 | 17520-ABZ-B00 | FUEL TANK SUB ASSY | 1 | |
