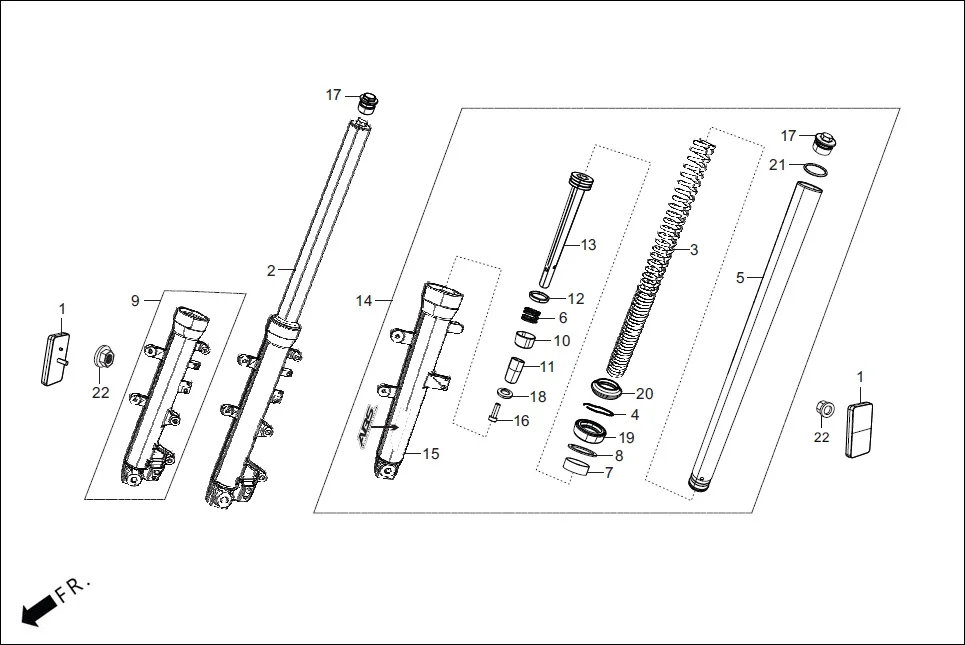

F-6A - FRONT CUSHION
Hero XTREME 160 4V FLAT PILLION(JULY, 2024) · 22 parts
Parts in This Assembly (22)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33740-AAB-000 | REFLEX REFLECTOR FRONT | 2 | |
| 2 | 51400-ABZ-000 | FORK ASSY R FRONT | 1 | |
| 3 | 51401-ABZ-000 | SPRING FR. FORK | 2 | |
| 4 | 90601-ABZ-000 | RING,OIL SEAL STOP | 2 | |
| 5 | 51410-ABZ-000 | PIPE COMP. FR FORK | 2 | |
| 6 | 51412-ABZ-000 | SPRING, REBOUND | 2 | |
| 7 | 51414-ABZ-000 | GUIDE BUSH | 2 | |
| 8 | 51419-ABZ-000 | RING BACKUP (PLAIN WASHER) | 2 | |
| 9 | 51420-ABZ-000 | CASE COMP. R FR BOTTOM | 1 | |
| 10 | 51423-ABZ-000 | SLIDE BUSH | 2 | |
| 11 | 51432-ABZ-000 | PIECE OIL LOCK | 2 | |
| 12 | 51437-ABZ-000 | RING, PISTON | 2 | |
| 13 | 51440-ABZ-000 | PIPE SEAT | 2 | |
| 14 | 51500-ABZ-000 | FORK ASSY L FRONT | 1 | |
| 15 | 51520-ABZ-000 | CASE L FR BOTTOM | 1 | |
| 16 | 90116-ABZ-000 | BOLT SOCKET | 2 | |
| 17 | 90123-ABZ-000 | BOLT FR. FORK | 2 | |
| 18 | 90544-ABZ-000 | WASHER SPECIAL | 2 | |
| 19 | 91255-ABZ-000 | SEAL OIL | 2 | |
| 20 | 91254-ABZ-000 | SEAL, DUST | 2 | |
| 21 | 91356-ABZ-000 | O RING | 2 | |
| 22 | 90302-KTE-911 | NUT FLANGE PT 6MM | 2 | |
