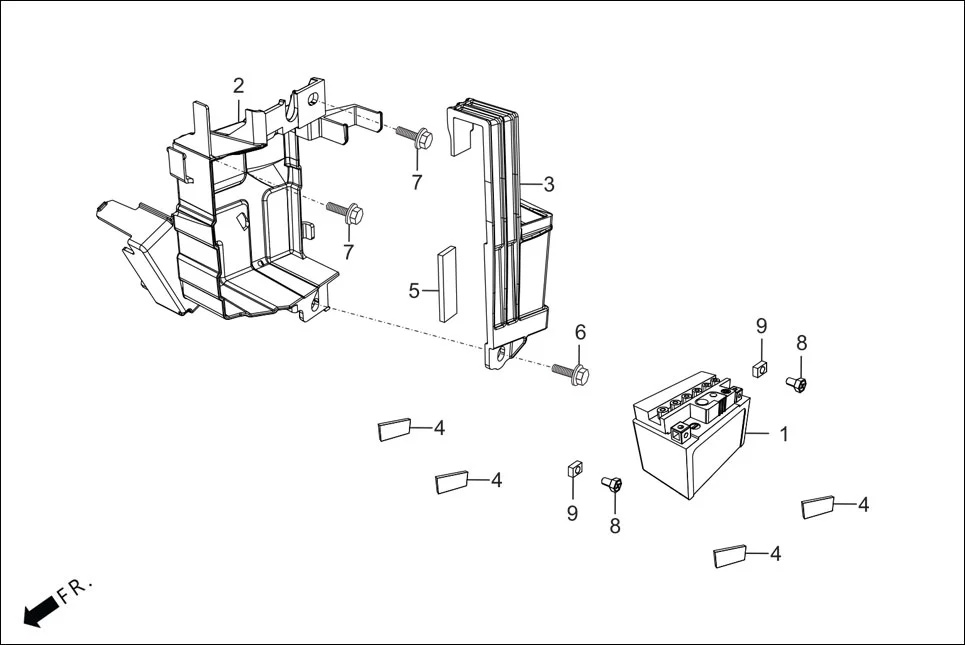

F-24B - BATTERY ASSY.
Hero XTREME 160 4V FLAT PILLION(JULY, 2024) · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31500-KRY-971 | BATTERY ASSY ETZ7 | 1 | |
| 1 | 31500-KRY-801 | BATTERY ASSY MF7 | 1 | |
| 2 | 1723A-ABZ-B00 | BOX BATTERY ASSY | 1 | |
| 3 | 17214-ABZ-B00 | BAND BATTERY | 1 | |
| 4 | 83407-KTR-940 | RUBBER, BATTERY | 4 | |
| 5 | 83403-ABZ-000 | CUSHION BATTERY | 1 | |
| 6 | 90112-KRP-900 | BOLT, FLANGE, 6X18 | 1 | |
| 7 | 90111-187-000 | BOLT, FLANGE. 6 MM | 2 | |
| 8 | 90122-KVT-941 | BOLT BATTERY TERMINAL | 2 | |
| 9 | 90306-KVT-941 | NUT BATTERY TERMINAL | 2 | |
