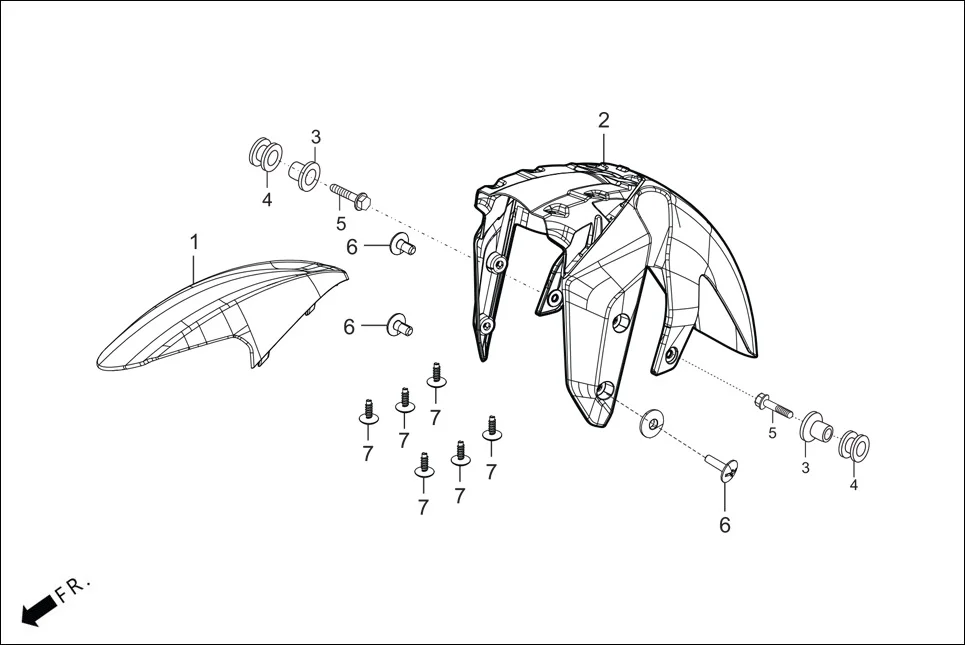

F-5_CONN - FRONT FENDER
Hero XTREME 160 4V FLAT PILLION(JULY, 2024) · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61101-ACR-000G | FRONT FENDER A (PEARL BLACK) | 1 | |
| 1 | 61101-ACR-0002 | FRONT FENDER A | 1 | |
| 2 | ACRES6A0050EEG | FRONT FENDER B BASIC (MET. AERIS BROWN - MATT) | 1 | |
| 3 | 84706-ABZ-600 | COLLAR TAIL LIGHT MTG | 2 | |
| 4 | 61105-KTC-900 | RUBBER, FRONT FENDER MOUNTING | 2 | |
| 5 | 95701-06022-00 | BOLT, FLANGE, SH. 6 X 22 | 2 | |
| 6 | 90381-KWA-940 | SCREW SPECIAL 6×13 | 4 | |
| 7 | 93903-34210 | SCREW TAPPING 4X10 | 6 | |
